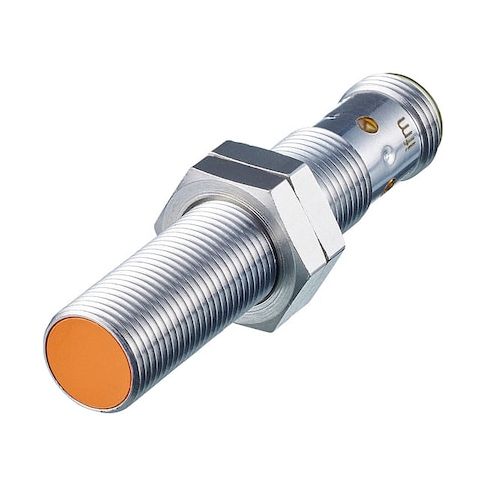

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IFS249
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded
This cylindrical inductive proximity sensor is designed for use in a variety of applications, including automation, industrial control, and robotics. Its compact 12mm diameter and 60mm length make it ideal for use in tight spaces. The sensor is powered by 10-30V DC and features a shielded design for improved performance and reliability. With a maximum detecting distance of 4mm and a 100mA current load, this sensor is suitable for a range of applications, including object detection, presence sensing, and control systems. Its IP65 to IP69K rating ensures durability in harsh environments.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces.
- Detects presence of objects within 4 mm distance.
- Operates at a frequency of 700 Hz for reliable sensing.
Top product applications:
- Automotive parts manufacturing for detecting the presence of metal objects
- Robotics and automation for detecting proximity of objects
- Medical device manufacturing for detecting the presence of metal objects in medical equipment
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on February 26, 2026 2:47pm UTC
Category: Industrial Electrical Controls and Automation
