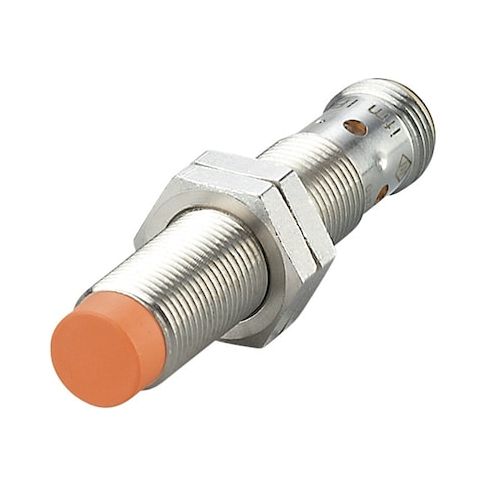

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IFS243
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive cylindrical proximity sensor is a reliable solution for detecting objects in a variety of applications, including industrial automation, robotics, and material handling. Its compact design and high-frequency operation enable accurate detection of objects up to 7mm away. The sensor's brass construction and IP68 rating ensure durability and resistance to harsh environments. With a simple 3-wire NPN output circuit and M12 connector, integration is easy. Suitable for use in temperatures from -40°C to 185°F, this sensor is ideal for applications in food processing, pharmaceuticals, and other industries where cleanliness and reliability are critical.
Top product features:
- Cylindrical design for easy installation and reduced obstruction
- Detects objects up to 7 mm away
- Operates at a frequency of 700 Hz for precise detection and reliable performance
Top product applications:
- Automotive Industry: Used for detecting metal objects in engine compartments, such as oil filters or air filters.
- Material Handling: Installed in conveyor systems to detect the presence of metal objects, such as cans or bottles.
- Medical Equipment: Integrated into medical devices, like hospital beds or medical carts, to detect the presence of metal objects, ensuring patient safety.
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.20
- Package Height: 0.40
- Package Weight: 0.06
Product info last updated on February 12, 2026 10:13am UTC
Category: Industrial Electrical Controls and Automation
