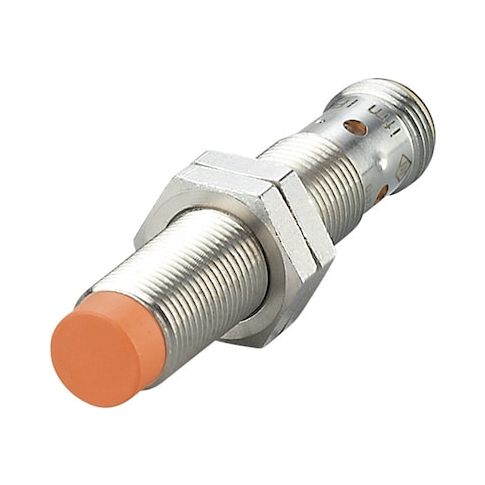

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IFS251
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for various industrial applications, including material handling, automation, and robotics. Its cylindrical design and 12 mm diameter make it easy to integrate into compact spaces. With a detection range of up to 7 mm and a frequency of 700 Hz, it can accurately detect the presence or absence of metal objects. The sensor's 3-wire NPN output and 10-30V DC power requirement make it easy to integrate into a wide range of systems. Suitable for use in harsh environments, it features an IP69K rating and operates in temperatures from -40 to 185°F.
Top product features:
- Cylindrical design allows for compact installation and flexibility in placement.
- Operating frequency of 700 Hz enables reliable detection and accurate sensing.
- Output circuit type is 3-wire NPN, allowing for versatile connection and integration options.
Top product applications:
- Automotive Parts Manufacturing
- Material Handling Equipment
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.80
- Package Height: 0.50
- Package Weight: 0.05
