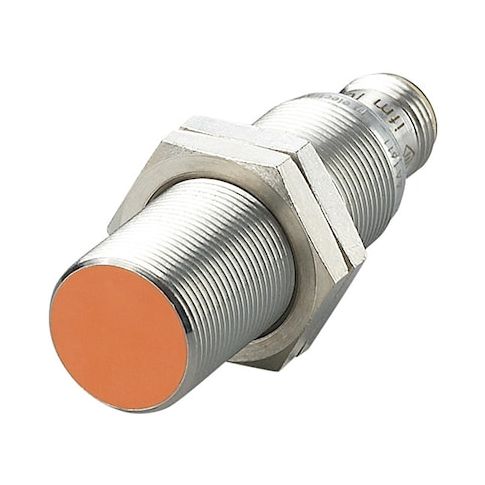

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IGS241
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects in a wide range of industrial applications. Its compact cylindrical design and shielded construction make it ideal for use in harsh environments, while its 10-30V DC power requirement and 400Hz operating frequency provide flexibility in system design. With a maximum detecting distance of 8mm and a 4-pin M12 connector, this sensor can be easily integrated into existing systems. Suitable for use in temperatures ranging from -40°C to 185°F, it is perfect for applications in food processing, pharmaceuticals, and other industries where hygiene and cleanliness are paramount.
Top product features:
- Cylindrical design for easy mounting and integration in compact spaces
- Detects objects within 8 mm distance, providing precise proximity detection
- Operates at a frequency of 400 Hz, allowing for reliable and consistent performance
Top product applications:
- Automotive Industry
- Material Handling and Logistics
- Robotics and Automation
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.10
Product info last updated on January 21, 2026 3:12pm UTC
Category: Industrial Electrical Controls and Automation
