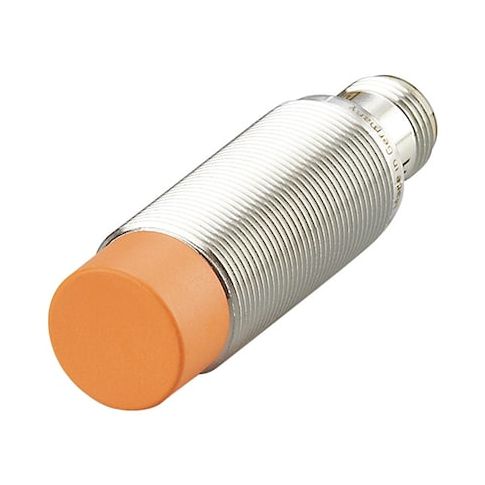

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IGS243
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive proximity sensor is a versatile and reliable solution for detecting objects and presence in various industrial and commercial applications. Its compact cylindrical design and 18mm diameter make it ideal for use in tight spaces, while its brass construction and white bronze coating ensure durability and resistance to corrosion. With a maximum detecting distance of 12mm and a wide operating temperature range of -40 to 185°F, this sensor is suitable for use in a variety of environments. It is also easy to install and integrate, with a simple 3-wire NPN output and M12 connector.
Top product features:
- Cylindrical shape allows for detection in tight spaces
- Operating frequency of 300 Hz enables fast and reliable detection
- 3 Wire NPN output circuit provides a simple and flexible way to connect the sensor to a control system
Top product applications:
- Machine Guarding
- Automated Conveyor Systems
- Material Handling Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.80
- Package Height: 0.50
- Package Weight: 0.10
Product info last updated on January 14, 2026 2:09pm UTC
Category: Industrial Electrical Controls and Automation
