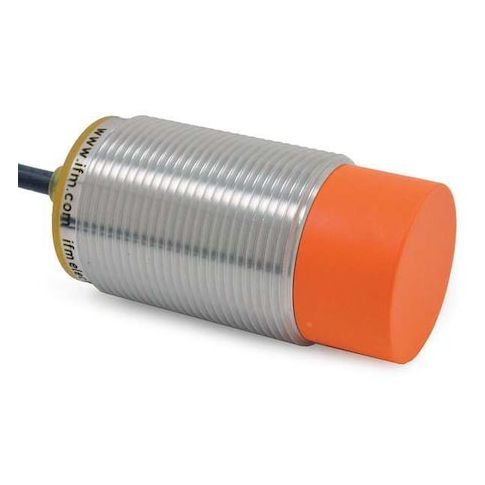

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded MPN:IIS239
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is a compact and reliable solution for detecting objects in industrial and commercial settings. Its cylindrical design and 30mm diameter make it ideal for use in tight spaces, while its 22mm maximum detecting distance allows for precise detection of objects. The sensor operates at 100Hz and requires a power input of 10-30V DC. With a 3-wire PNP output and a maximum current load of 100mA, this sensor is suitable for a variety of applications, including material handling, packaging, and automation. It is also suitable for use in harsh environments due to its IP65-IP69K rating.
Top product features:
- Cylindrical design allows for easy installation and positioning in tight spaces.
- Detects objects within a 22 mm distance, providing accurate proximity sensing.
- Operates at a frequency of 100 Hz, ensuring reliable and consistent performance.
Top product applications:
- Automotive Industry
- Industrial Automation
- Material Handling Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.30
- Package Weight: 0.30
Product info last updated on February 4, 2026 8:13pm UTC
Category: Industrial Electrical Controls and Automation
