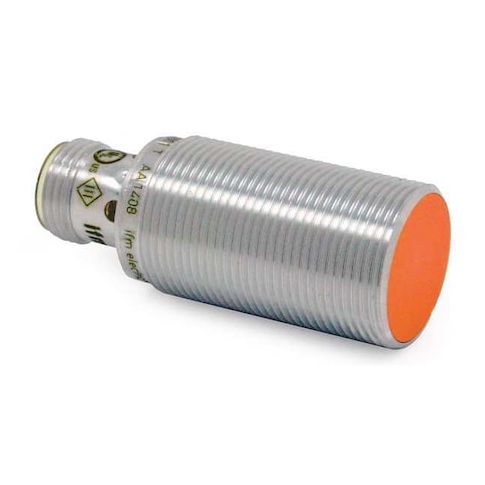

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IGS252
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded
The IFM Inductive Cylindrical Proximity Sensor is a reliable and versatile solution for detecting objects in a variety of applications. This 18mm diameter sensor can be used in industrial settings, such as conveyor belt monitoring, tank level detection, and material handling, where its ability to detect metal objects up to 8mm away is crucial. With its shielded design and 3-wire PNP output, it provides accurate and consistent measurements, even in harsh environments. Its compact size and brass construction make it easy to integrate into existing systems, offering a durable and long-lasting solution for industrial automation and process control.
Top product features:
- Cylindrical design allows for easy mounting in tight spaces
- Detects objects up to 8 mm away
- Operates at a frequency of 400 Hz
Top product applications:
- Automotive assembly lines for detecting metal objects
- Industrial automation for detecting metal parts on conveyor belts
- Medical equipment for detecting metal objects in proximity to patients
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.70
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on February 13, 2026 9:32am UTC
Category: Industrial Electrical Controls and Automation
