Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IGS254
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

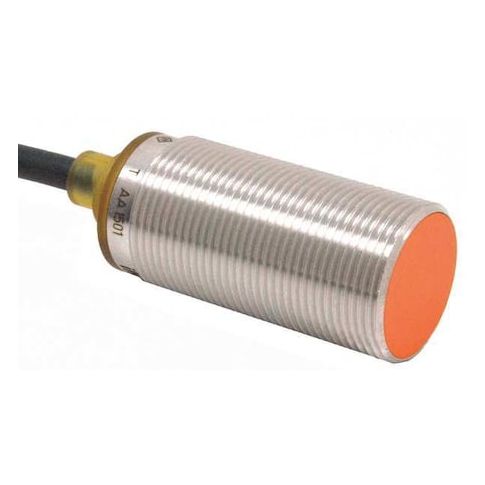

This inductive proximity sensor is a reliable and efficient solution for detecting objects in various industrial and commercial applications. With a maximum detecting distance of 8 mm and a wide operating temperature range of -40 to 185°F, it can be used in harsh environments. The sensor's shielded design and IP65 to IP69K rating ensure robust performance and protection against dust and water. Suitable for use in automated manufacturing, material handling, and quality control, this sensor provides a 3-wire NPN output and can operate on a 10-30V DC power supply. Its compact cylindrical design makes it easy to integrate into existing systems.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Shielding reduces electromagnetic interference and improves sensor performance
- Operating temperature range of -40 to 185 Degrees F enables reliable operation in extreme environments
Top product applications:
- Automotive manufacturing for detecting metal parts on production lines
- Material handling and logistics for detecting objects on conveyor belts
- Medical equipment for detecting the presence of medical devices or tools
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 0.01
- Package Weight: 0.10
Product info last updated on February 18, 2026 4:58pm UTC
Category: Industrial Electrical Controls and Automation
