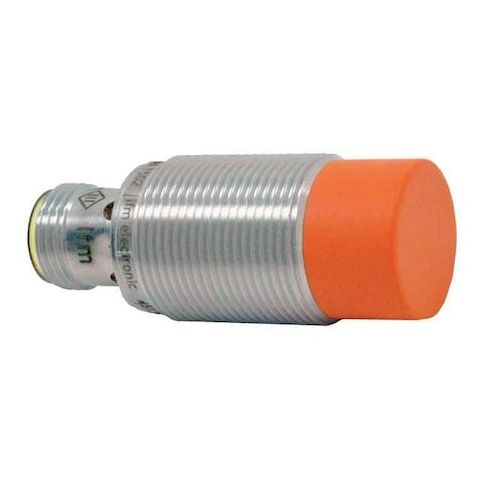

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IGS237
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects within a 12 mm range. Suitable for use in harsh environments, it operates within a temperature range of -40 to 185°F and is resistant to dust and water, meeting IP65 to IP69K ratings. The sensor's 4-pin M12 connector provides a secure connection, and its compact design makes it easy to integrate into various applications. Ideal for use in industrial automation, robotics, and material handling, this sensor ensures precise detection and reliable performance. Its long lifespan and easy installation make it a valuable addition to any system.
Top product features:
- Cylindrical shape allows for easy installation and positioning in tight spaces.
- Detects objects up to 12 mm away with a 300 Hz operating frequency.
- Operates reliably in harsh environments with an IP65 to IP69K rating.
Top product applications:
- Machine Vision Systems
- Automotive Parts Inspection
- Industrial Automation
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 15, 2026 5:37am UTC
Category: Industrial Electrical Controls and Automation
