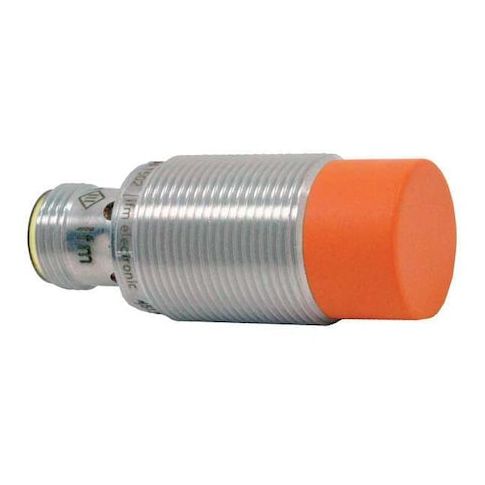

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IGS253
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive cylindrical proximity sensor is designed for use in various industrial applications, including material handling, packaging, and robotics. Its compact 18mm diameter and 45mm length make it easy to integrate into tight spaces. The sensor operates at a frequency of 300Hz and has a maximum detecting distance of 12mm, allowing for precise detection of objects. With a power requirement of 10-30V DC and a maximum current load of 100mA, it's suitable for a range of applications. Its IP65-IP69K rating ensures reliable operation in harsh environments, making it an ideal choice for demanding industrial settings.
Top product features:
- Inductive sensing technology detects objects within a 12 mm range
- 3-Wire PNP output circuit provides a simple and reliable switching signal
- Operating temperature range of -40 to 185 degrees F allows for use in harsh environments
Top product applications:
- Automotive Parts Manufacturing
- Material Handling Equipment
- Robotics and Automation
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 0.01
- Package Weight: 0.10
Product info last updated on February 8, 2026 11:37am UTC
Category: Industrial Electrical Controls and Automation
