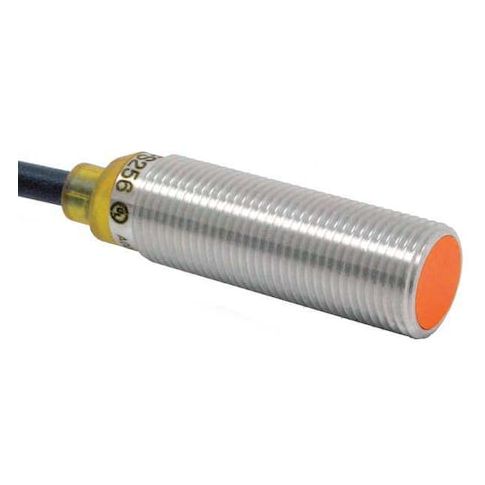

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded MPN:IFS256
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded
This inductive proximity sensor is a reliable and versatile tool for detecting objects in a variety of applications. With a cylindrical design and 12mm diameter, it can be easily integrated into tight spaces. The sensor operates on a wide range of DC voltages (10-30V) and has a maximum detecting distance of 4mm. Its shielded design and IP65-IP69K rating make it suitable for use in harsh environments. Ideal for use in industrial automation, robotics, and material handling, this sensor provides a simple and efficient way to detect objects and track movement, improving productivity and reducing downtime.
Top product features:
- Cylindrical shape allows for placement in tight spaces
- Detects objects within 4 mm distance
- Operates over a temperature range of -40 to 185 degrees Fahrenheit
Top product applications:
- Automotive applications such as detecting objects in tight spaces
- Industrial automation for detecting metal objects
- Medical equipment for detecting the presence of metal objects in a patient's body
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.16
Product info last updated on January 15, 2026 7:46am UTC
Category: Industrial Electrical Controls and Automation
