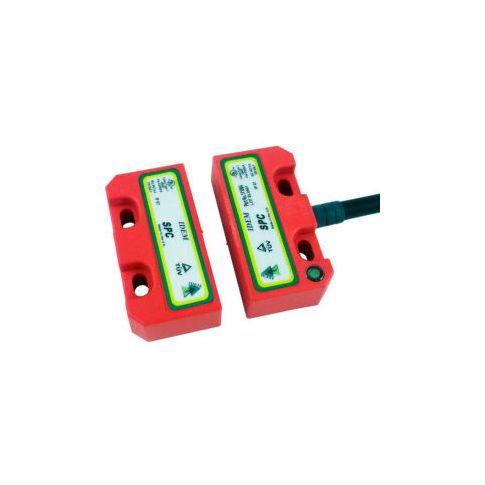

IDEM 111007 SPC Coded Non Contact Switch W/LED 10M 2NC 1NO 111007

Idem 111007 spc coded non contact switch w/led 10m 2nc 1no all idem coded non contact safety switches have been designed to enable the conformance to en60947-5-3 and be used as directed by iso12100 iso14121 and en60204-1. They have coded magnetic sensing which provides a wide sensing distance and provides a high tolerance to misalignment after sensing. They can be fitted behind stainless steel fittings and can operate from 4 directions even in extreme environments of temperature and moisture. When used in combination with most dual channel safety monitoring relays they can be used to provide up to ple/category 4 to iso13849-1. They offer a choice of high specification plastic or stainless steel 316. Dual channel electronic safety output 2nc (1no auxiliary optional) - visual led indication of switch status - enclosure protected to ip67 or ip69k - wash down suitable - conformance to en60947-5-3 pdf-s - no moving parts to give high reliability and long life - wide sensing distance up to 14mm - universal 22mm fixing centers.
