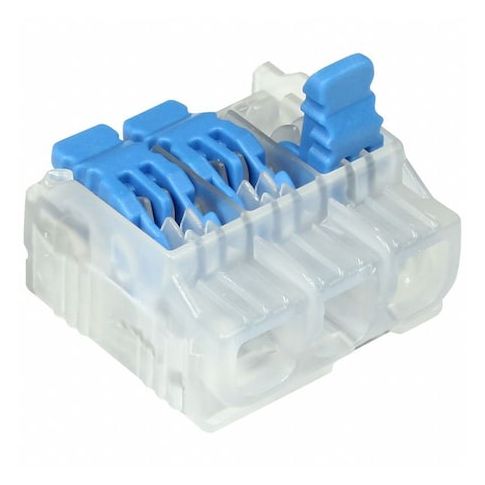

Lever Wire Connector, 12 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 100 PK MPN:30-10L23
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G906458544
Lever Wire Connector, 12 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 100 PK
Maximize your electrical connections with the Ideal Lever Wire Connector, a reliable and efficient solution for your wiring needs. This 3-port connector is designed for use with 12 AWG max stranded copper wire and features a polycarbonate insulation for durability and safety. With a maximum operating temperature of 221°F and a voltage rating of 600V, this connector is suitable for a wide range of applications, including industrial and commercial settings. Its compact design and lever-style operation make it easy to use and install, reducing downtime and increasing productivity. Ideal for use in electrical panels, control systems, and other high-demand applications.
Top product features:
- Lever wire connector with 3 ports for multiple wire connections
- Polycarbonate insulation for electrical safety and durability
- Copper contacts for high-current and high-reliability connections up to 20 A
Top product applications:
- Electrical Panel Wiring
- Electrical Outlet Installations
- Appliance Wiring
Lever Wire Connector, Color Blue, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.41 in, Overall Length 0.78 in, Overall Width 0.77 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CE, cUL, IEC/EN, RoHS, UL, Contact Material Copper, Current 20 A
Additional Information
- Country of Origin: AT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.60
- Package Width: 3.50
- Package Height: 3.20
- Package Weight: 0.82
Product info last updated on March 23, 2026 4:29am UTC
Category: Electrical Connectors
