Lever Wire Connector, 12 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 350 PK MPN:30-35L23J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G606458523

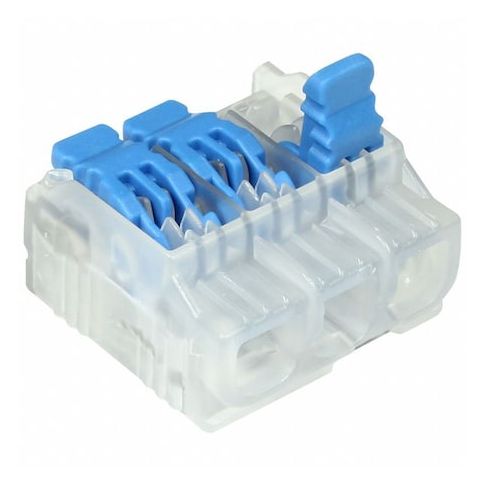

Lever Wire Connector, 12 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 350 PK
This 3-port lever wire connector is designed for heavy-duty applications, featuring a robust polycarbonate housing and copper contacts that can handle up to 20A of current at 600V. Ideal for use in industrial settings, it provides a secure and reliable connection for copper conductors with a minimum size of 24 AWG and a maximum size of 12 AWG. The lever-style design makes it easy to use, even in tight spaces. Suitable for applications such as control panels, machinery, and electrical distribution systems, this connector offers a cost-effective solution for demanding electrical connections.
Top product features:
- Polycarbonate insulation provides electrical isolation and protection.
- Three-port design allows for multiple wire connections in a single device.
- Copper contact material enables efficient electrical conduction and reduces corrosion.
Top product applications:
- Electrical Panel Installation
- Building Automation Systems
- Industrial Control Panels
Lever Wire Connector, Color Blue, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.41 in, Overall Length 0.78 in, Overall Width 0.77 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CE, cUL, IEC/EN, RoHS, UL, Contact Material Copper, Current 20 A
Additional Information
- Country of Origin: AT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.60
- Package Width: 3.70
- Package Height: 8.30
- Package Weight: 2.93
Product info last updated on February 8, 2026 3:38pm UTC
Category: Electrical Connectors
