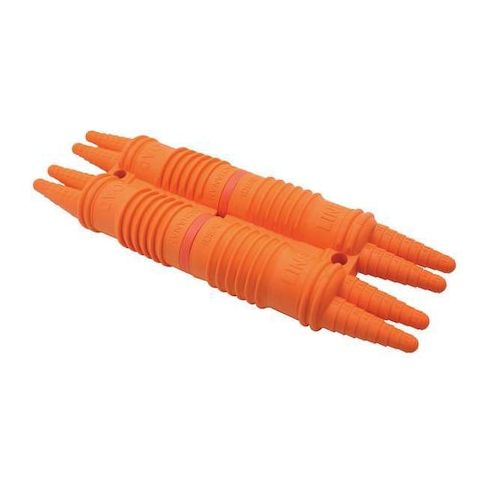

St Lght Dscnnct, Crimp, Brkwy, Y-Tap, 2Poles MPN:30-C2026
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5628576
St Lght Dscnnct, Crimp, Brkwy, Y-Tap, 2Poles
The Ideal Street Light Disconnect is a reliable and efficient solution for managing street lighting systems. This 2-pole disconnect is designed for use with aluminum or copper conductors and can handle currents up to 30A. Its Y-Tap style makes it easy to connect and disconnect lines, while its crimp termination ensures secure and long-lasting connections. Ideal for outdoor applications, this disconnect can withstand temperatures up to 221°F and operates safely at voltages up to 600V. Suitable for use in street lighting systems, it provides a convenient and safe way to manage power distribution and connections.
Top product features:
- Disconnects street lights in a breakaway style
- Crimps onto conductors for secure connections
- Supports loads of up to 30 A at 600 V
Top product applications:
- Street lighting systems for new installations or upgrades
- Outdoor electrical panels for residential or commercial properties
- Utility company electrical distribution systems for streetlights and other infrastructure
Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Y-Tap, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 4 AWG, For Maximum Line Wire Size 2 AWG, Load Outputs 2, For Minimum Load Wire Size 14 AWG, For Maximum Load Wire Size 10 AWG, Fused Fused, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 2, Secondary Connection Poles 2, Termination Style Crimp, Color Orange
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 1.25
- Package Weight: 0.35
Product info last updated on January 15, 2026 8:35am UTC
Category: Electrical Connectors
