Lever Wire Connector, 12 AWG Max, 2 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 500 PK MPN:30-50L22J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G306458540

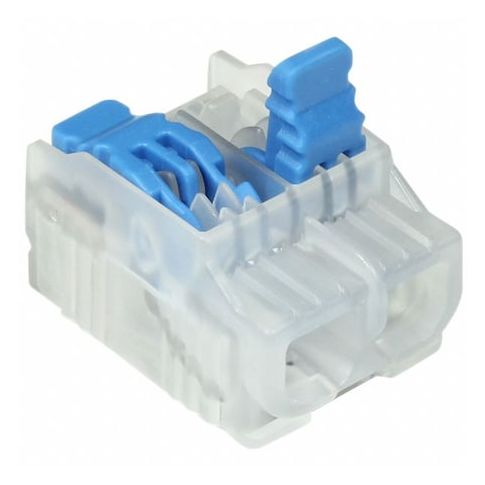

Lever Wire Connector, 12 AWG Max, 2 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 500 PK
Upgrade your electrical connections with the Ideal Lever Wire Connector, a reliable and efficient solution for various applications. This 2-port connector features polycarbonate insulation and copper contacts, ensuring secure connections and optimal performance. With a maximum operating temperature of 221°F and a maximum voltage of 600V, it's ideal for use in demanding environments. Suitable for stranded wire sizes from 24 to 12 AWG, this connector is perfect for electrical contractors, industrial settings, and residential projects. Its compact design and lever-style operation make it easy to use, reducing installation time and improving overall efficiency.
Top product features:
- Polycarbonate insulation provides electrical insulation and safety
- Copper contact material ensures reliable electrical connections
- 2-port design allows for connection of two wires simultaneously
Top product applications:
- Automotive wiring harnesses
- Electrical panel building
- Industrial control panel wiring
Lever Wire Connector, Color Blue, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.41 in, Overall Length 0.56 in, Overall Width 0.77 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards CE, cUL, IEC/EN, RoHS, UL, Contact Material Copper, Current 20 A
Additional Information
- Country of Origin: AT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.60
- Package Width: 3.80
- Package Height: 8.30
- Package Weight: 2.91
Product info last updated on February 4, 2026 5:17pm UTC
Category: Electrical Connectors
