Twist-On Wire Connector, 16 AWG Max, Black, Polybutylene Terephthalate Insulation, 300 V, 100 PK MPN:30-3627
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2884637

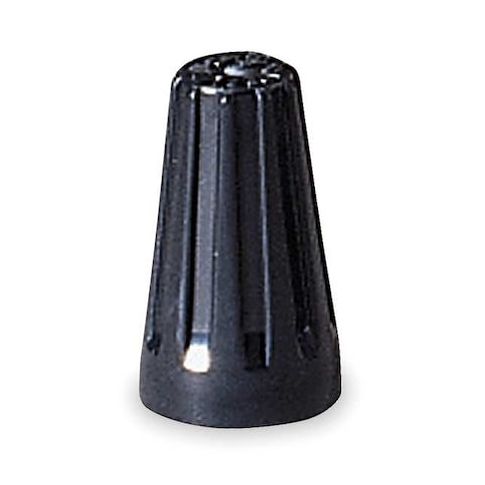

Twist-On Wire Connector, 16 AWG Max, Black, Polybutylene Terephthalate Insulation, 300 V, 100 PK
Ideal's Twist-On Wire Connector is a reliable and efficient solution for connecting copper conductors in high-temperature applications. With a maximum operating temperature of 302°F and a voltage rating of 300V, this connector is suitable for a wide range of uses, including residential and commercial electrical systems. Its polybutylene terephthalate insulation and zinc-plated steel contacts ensure durability and corrosion resistance. The connector's compact design and easy twist-on installation make it ideal for use in tight spaces, and its UL Listed and CSA Certified ratings provide assurance of safety and quality. Perfect for high-temperature applications, such as HVAC and industrial settings.
Top product features:
- Twist-On design allows for easy wire connection
- Maximum operating temperature of 302 Degrees F enables high-temperature applications
- Maximum voltage rating of 300 V provides safe and reliable electrical connections
Top product applications:
- Electrical Panel Installation
- Household Circuit Wiring
- Appliance Installation
Twist-On Wire Connectors, Color Black, For Conductor Material Copper, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination (2) 16 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-0, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Compatible with Product Type High Temperature, Fill Material Not Applicable, Insulation Material Thermoplastic Polyester
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.70
- Package Width: 3.40
- Package Height: 2.30
- Package Weight: 0.20
Product info last updated on January 13, 2026 1:49pm UTC
Category: Electrical Connectors
