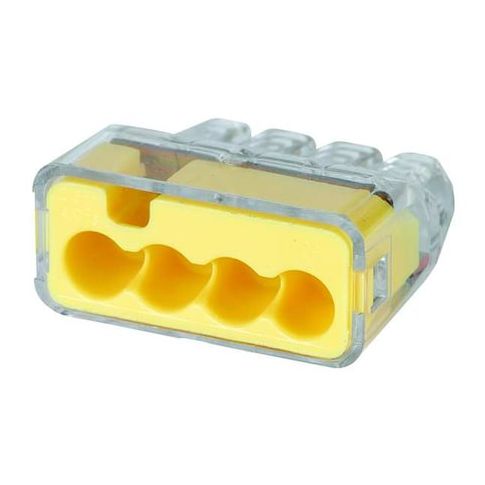

Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 200 PK MPN:30-1034J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2483485
Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 200 PK
Ideal's 4-port push-in wire connector is a reliable and efficient solution for electrical connections. Designed for use with copper and tin-plated copper conductors, this connector is ideal for applications where space is limited, such as in industrial control panels, lighting fixtures, and HVAC systems. Its polycarbonate insulation and maximum operating temperature of 221°F make it suitable for a wide range of environments. With a maximum voltage of 600V and a current rating of 20A, this connector provides a secure and reliable connection. Its compact size and easy push-in design make it a convenient choice for many applications.
Top product features:
- Push-In wire connector design allows for easy and secure connection of wires
- Polycarbonate insulation provides electrical insulation and protection
- Maximum operating temperature of 221 Degrees F enables use in high-temperature applications
Top product applications:
- Industrial electrical panel building
- Commercial electrical wiring
- Home automation system installation
Push-In Wire Connector, Color Yellow, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.38 in, Overall Length 0.78 in, Overall Width 0.82 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 4, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.80
- Package Width: 8.60
- Package Height: 7.30
- Package Weight: 7.87
Product info last updated on January 13, 2026 12:09pm UTC
Category: Electrical Connectors
