Push-In Wire Connector, 12 AWG Max, 2 Port, Red, Polycarbonate Insulation, 600 V, 20 A, 300 PK MPN:30-1032J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2341604

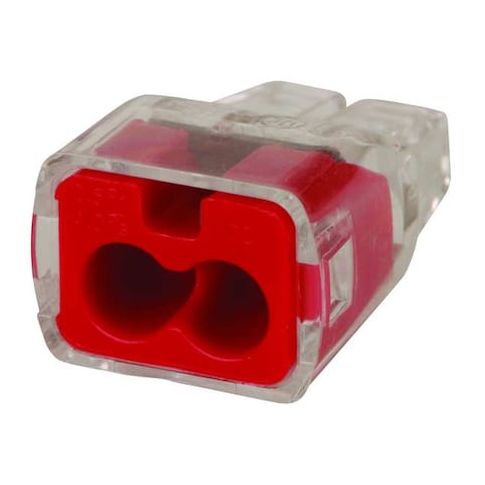

Push-In Wire Connector, 12 AWG Max, 2 Port, Red, Polycarbonate Insulation, 600 V, 20 A, 300 PK
Ideal's 2-port Push-In Wire Connector is a reliable and efficient solution for various electrical applications. Suitable for use with copper and tin-plated copper conductors, this connector features a maximum wire size of 12 AWG and a minimum wire size of 16 AWG. Its polycarbonate insulation and UL 94 V-2 flammability rating ensure a safe and secure connection. With a maximum operating temperature of 221°F and a maximum voltage of 600V, this connector is ideal for use in a range of applications, including residential and commercial electrical installations, industrial control systems, and more. It's also RoHS compliant and ships in just one day.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires without the need for screws or crimping.
- The connector is rated for maximum operating temperatures of up to 221 Degrees F, enabling reliable performance in a variety of applications.
- The connector is designed for use with stranded wire sizes between 16 AWG and 12 AWG, accommodating a range of wire diameters.
Top product applications:
- Automotive Electrical Systems
- Electrical Panel Building
- Appliance Wiring
Push-In Wire Connector, Color Red, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.38 in, Overall Length 0.77 in, Overall Width 0.52 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.70
- Package Width: 8.90
- Package Height: 7.20
- Package Weight: 8.00
Product info last updated on January 13, 2026 12:29pm UTC
Category: Electrical Connectors
