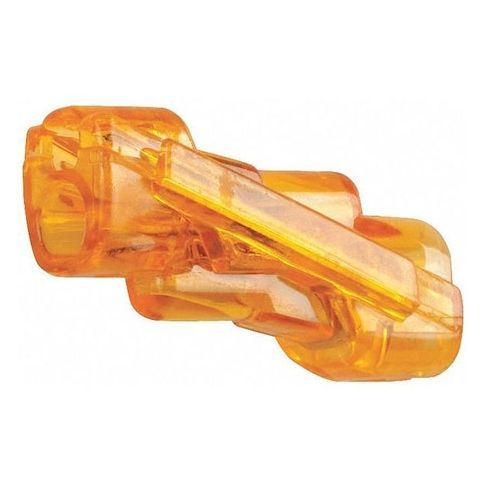

Push-In Wire Connector, 12 AWG Max, 2 Port, Orange, Polycarbonate Insulation, 600 V, 300 PK MPN:30-1042J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2114594
Push-In Wire Connector, 12 AWG Max, 2 Port, Orange, Polycarbonate Insulation, 600 V, 300 PK
Ideal's 2-Port Push-In Wire Connector is a reliable and efficient solution for electrical connections. Designed for use with copper and tin-plated copper conductors, this connector is ideal for applications where a secure and easy-to-use connection is required. With a maximum operating temperature of 221°F and a maximum voltage of 600V, this connector is suitable for a wide range of applications, including residential and commercial electrical systems, industrial control panels, and more. Its polycarbonate insulation and tin-plated contacts ensure a long-lasting and reliable connection, making it a great choice for any electrical project.
Top product features:
- Push-In design for easy wire connection
- Polycarbonate insulation for durability and heat resistance
- Maximum operating temperature of 221 Degrees F for reliable performance in high-temperature applications
Top product applications:
- House wiring
- Electrical panel connections
- Appliance installations
Push-In Wire Connector, Color Orange, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 1 in, Overall Width 0.41 in, Connector Type Push-In/In-Line, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards CSA C22.2#188, UL 467, UL 486C, Contact Finish Tin
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.60
- Package Width: 8.90
- Package Height: 7.20
- Package Weight: 6.50
Product info last updated on January 13, 2026 2:09pm UTC
Category: Electrical Connectors
