Push-In Wire Connector, 10 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 30 A, 50 PK MPN:30-1039
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1244442

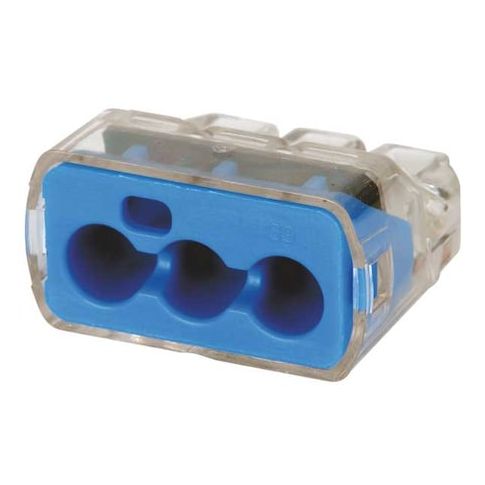

Push-In Wire Connector, 10 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 30 A, 50 PK
Ideal's 3-port push-in wire connector is a reliable and efficient solution for electrical applications. Designed for use with 10 AWG max, 600V, and 30A, this connector is perfect for residential and commercial wiring projects. Its polycarbonate insulation and tin-plated copper construction ensure durability and conductivity. The push-in design makes it easy to install, reducing installation time and labor costs. Suitable for applications in harsh environments, this connector can withstand temperatures up to 221°F. Ideal for use in a variety of settings, including construction, manufacturing, and maintenance, this connector provides a secure and long-lasting connection for electrical systems.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires without the need for tools.
- The connector is rated for a maximum operating temperature of 221 Degrees F, making it suitable for use in a variety of applications.
- The connector has a 600 V maximum voltage rating, ensuring safe and reliable electrical connections.
Top product applications:
- Wire harness assembly
- Electrical panel building
- Automotive wiring installation
Push-In Wire Connector, Color Blue, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 12 AWG, For Maximum Wire Size - Stranded 10 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.45 in, Overall Length 0.78 in, Overall Width 0.86 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 13.70
- Package Width: 4.30
- Package Height: 6.90
- Package Weight: 4.90
