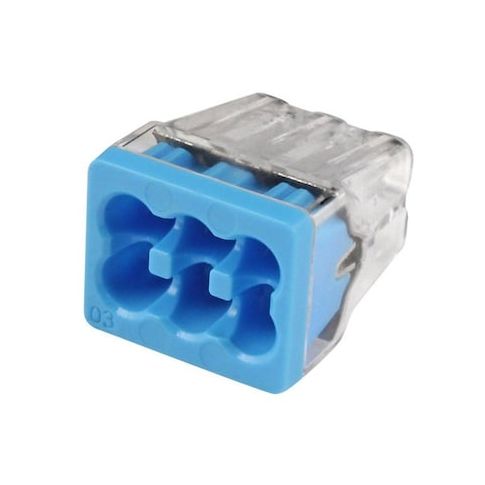

Push-In Wire Connector, 12 AWG Max, 6 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 200 PK MPN:30-1088J
Push-In Wire Connector, 12 AWG Max, 6 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 200 PK
Ideal's 6-port push-in wire connector is designed for reliable connections in a variety of applications. Suitable for use with copper and tin-plated copper conductors, this connector is ideal for residential and commercial electrical installations. Its polycarbonate insulation ensures durability and resistance to heat, with a maximum operating temperature of 221°F. The connector's 600V rating and 20A capacity make it suitable for a range of applications, including lighting, HVAC, and security systems. With a compact design and easy push-in installation, this connector streamlines electrical connections and reduces installation time.
Top product features:
- Push-In wire connector for easy and secure connection
- Accepts stranded wire sizes from 16 AWG to 12 AWG for flexibility
- Polycarbonate insulation for high-temperature operation up to 221 Degrees F
Top product applications:
- Home Wiring: The push-in wire connector is suitable for connecting 12 AWG wires in home wiring applications.
- Automotive Wiring: The push-in wire connector can be used to connect wires in automotive electrical systems, particularly in applications where a secure and reliable connection is required.
- Industrial Control Panels: The 6-port push-in wire connector can be used to connect multiple wires in industrial control panels, providing a convenient and efficient way to make connections in these applications.
Push-In Wire Connector, Color Blue, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.48 in, Overall Length 0.69 in, Overall Width 0.59 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 6, RoHS Compliant Yes, Standards CSA, UL Listed
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 6
- Unit of Measure: PK
- Package Length: 4.30
- Package Width: 2.80
- Package Height: 6.70
- Package Weight: 1.15
Product info last updated on January 15, 2026 3:36am UTC
Category: Electrical Connectors
