Push-In Wire Connector, 12 AWG Max, 2 Port, Red, Polycarbonate Insulation, 600 V, 20 A, 100 PK MPN:30-1032
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1062257

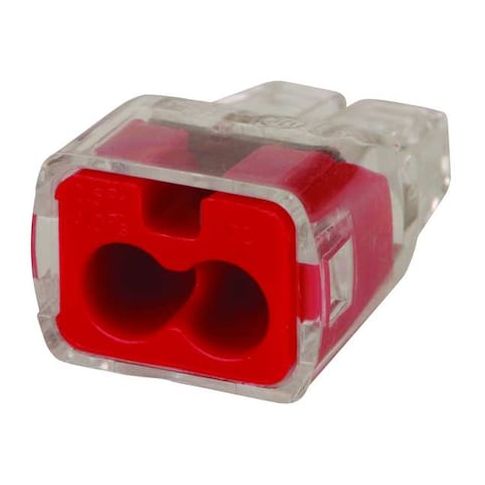

Push-In Wire Connector, 12 AWG Max, 2 Port, Red, Polycarbonate Insulation, 600 V, 20 A, 100 PK
Ideal's 2-port push-in wire connector is a reliable and efficient solution for electrical connections. Suitable for use with copper and tin-plated copper conductors, this connector features a maximum operating temperature of 221°F and a maximum voltage of 600V. Its polycarbonate insulation ensures durability and meets UL 94 V-2 flammability standards. With a compact design and easy push-in installation, this connector is ideal for use in a variety of applications, including industrial and commercial electrical systems, as well as residential installations. Its RoHS compliance and CSA/UL certification make it a trusted choice for electrical professionals.
Top product features:
- Push-In wire connector for easy and secure connection
- Accepts stranded wire sizes from 16 AWG to 12 AWG for flexibility in wire selection
- UL 94 Flammability Rating V-2 for high safety standards
Top product applications:
- Wire harness assembly
- Electrical panel building
- Automotive wiring installation
Push-In Wire Connector, Color Red, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.38 in, Overall Length 0.78 in, Overall Width 0.52 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 14.90
- Package Width: 4.60
- Package Height: 6.80
- Package Weight: 4.63
Product info last updated on February 1, 2026 12:15pm UTC
Category: Electrical Connectors
