Twist-On Wire Connector, 8 AWG Max, Tan, Polypropylene Insulation, 600 V, 500 PK MPN:30-641J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100700302

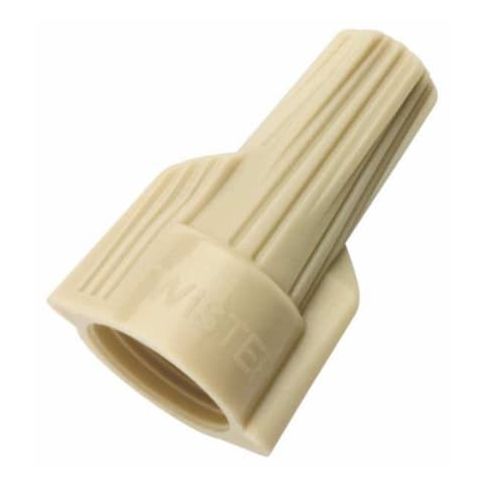

Twist-On Wire Connector, 8 AWG Max, Tan, Polypropylene Insulation, 600 V, 500 PK
Ideal's Twist-On Wire Connectors are a reliable and efficient solution for electrical connections. With a maximum operating temperature of 221°F and a 600V rating, these connectors are suitable for a variety of applications, including residential and commercial wiring. The tan-colored connectors are made with polypropylene insulation and feature a zinc-coated steel contact finish. They can accommodate up to 6 conductors and are designed for use with copper wire. The connectors meet various international safety standards, including UL 486C and CSA-C22.2 No. 188. Suitable for use in a range of industries, including construction, manufacturing, and electrical contracting.
Top product features:
- Twist-On Wire Connector design allows for easy wire connection and disconnection
- Maximum Operating Temperature of 221 Degrees F enables use in a variety of applications
- Maximum Conductors of 6 allows for connection of multiple wires in a single connector
Top product applications:
- Household electrical wiring projects
- Automotive electrical system repairs
- Industrial electrical panel assembly
Twist-On Wire Connectors, Color Tan, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (3) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA- C22.2 No. 188, IEC 998-2, IEC 998-2-4, UL 486C, W-S-610E, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 6.60
- Package Width: 4.70
- Package Height: 7.70
- Package Weight: 2.33
Product info last updated on February 27, 2026 12:24pm UTC
Category: Electrical Connectors
