Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 5000 PK MPN:30-1634
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0764145
Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 5000 PK

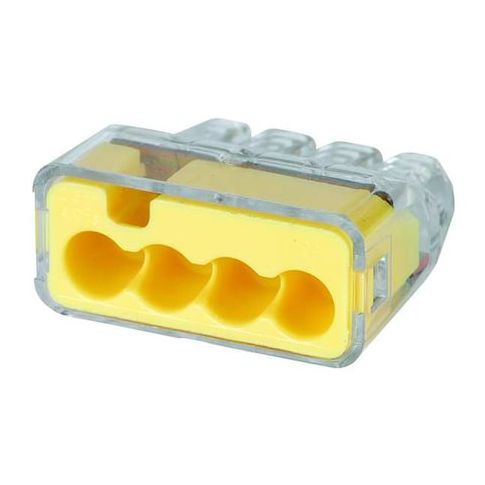

Ideal's 4-Port Push-In Wire Connector is a reliable and efficient solution for electrical connections. This yellow polycarbonate-insulated connector is designed for use with copper or tin-plated copper conductors, accommodating stranded wires from 16 AWG to 12 AWG. With a maximum operating temperature of 221°F and a voltage rating of 600V, this connector is suitable for a variety of applications, including industrial control panels, residential wiring, and commercial electrical installations. Its push-in design makes it easy to use and reduces the risk of electrical shock, making it a great choice for professionals and DIYers alike.
Top product features:
- Push-In Wire Connector for easy and secure wire connection
- Connectors are rated for 600 V and 20 A for safe and reliable operation
- Polycarbonate insulation provides high-temperature resistance up to 221 Degrees F
Top product applications:
- Automotive Wiring
- Electrical Panel Building
- Appliance Wiring
Push-In Wire Connector, Color Yellow, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.38 in, Overall Length 0.78 in, Overall Width 0.82 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 4, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 14.80
- Package Width: 14.50
- Package Height: 9.90
- Package Weight: 29.35
Product info last updated on January 14, 2026 6:24pm UTC
Category: Electrical Connectors
