Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 100 PK MPN:30-1034
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0645915

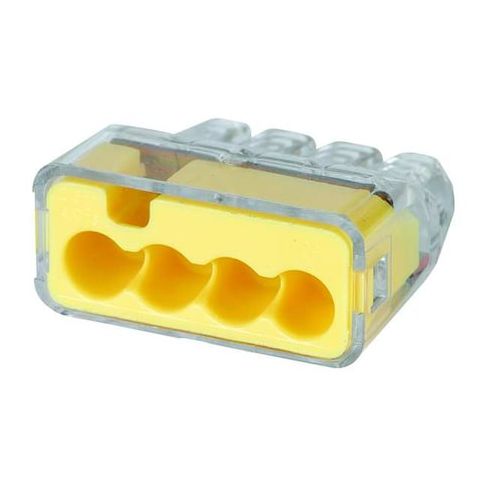

Push-In Wire Connector, 12 AWG Max, 4 Port, Yellow, Polycarbonate Insulation, 600 V, 20 A, 100 PK
Ideal's 4-port push-in wire connector is a reliable and efficient solution for electrical connections. Suitable for use with copper or tin-plated copper conductors, this connector features a maximum operating temperature of 221°F and a maximum voltage of 600V. Its polycarbonate insulation and push-in design make it easy to install and secure. This connector is ideal for use in a variety of applications, including residential and commercial electrical systems, industrial control panels, and audio/visual equipment. With a UL 94 V-2 flammability rating and RoHS compliance, this connector meets strict safety and environmental standards.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires
- Polycarbonate insulation provides electrical insulation and flame resistance
- Maximum operating temperature of 221 Degrees F allows for use in high-temperature applications
Top product applications:
- Electrical Panel Installation
- Industrial Control Panel Wiring
- Commercial Lighting Systems
Push-In Wire Connector, Color Yellow, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.38 in, Overall Length 0.78 in, Overall Width 0.82 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 4, RoHS Compliant Yes, Standards CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 14.90
- Package Width: 4.50
- Package Height: 6.90
- Package Weight: 6.38
Product info last updated on January 15, 2026 8:02am UTC
Category: Electrical Connectors
