Push-In Wire Connector, 12 AWG Max, 2 Port, Orange, Polycarbonate Insulation, 600 V, 100 PK MPN:30-1042
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0600783

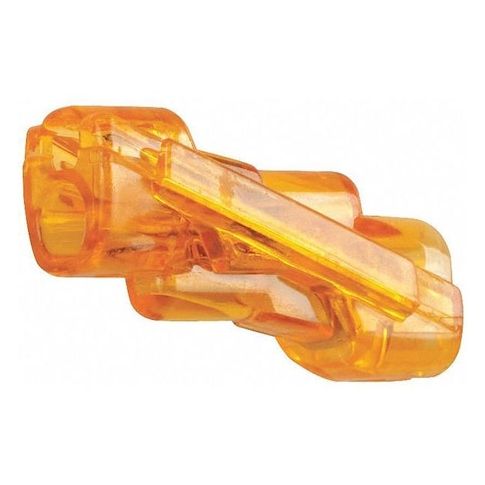

Push-In Wire Connector, 12 AWG Max, 2 Port, Orange, Polycarbonate Insulation, 600 V, 100 PK
Ideal's 2-port push-in wire connector is a versatile and reliable solution for a variety of applications. Suitable for use with copper and tin-plated copper conductors, this connector is ideal for electrical installations, such as residential and commercial wiring, as well as industrial and automotive applications. Its polycarbonate insulation and tin-plated contacts ensure durable and long-lasting performance, even in high-temperature environments. With a maximum operating temperature of 221°F and a voltage rating of 600V, this connector is designed to withstand the demands of heavy-duty use. Its compact design makes it easy to install and use, reducing installation time and costs.
Top product features:
- Push-In wire connector design allows for easy and secure wire connections without the need for tools or stripping.
- Housing made of polycarbonate insulation provides a durable and flame-resistant barrier for electrical connections.
- Maximum operating temperature of 221 Degrees F enables the connector to withstand high-temperature applications.
Top product applications:
- House Wiring
- Automotive Wiring
- Industrial Control Panels
Push-In Wire Connector, Color Orange, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 16 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 1 in, Overall Width 0.41 in, Connector Type Push-In/In-Line, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards CSA C22.2#188, UL 467, UL 486C, Contact Finish Tin
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 14.90
- Package Width: 4.50
- Package Height: 7.00
- Package Weight: 3.85
Product info last updated on January 15, 2026 7:59am UTC
Category: Electrical Connectors
