Washdown Motor, 2 HP, TEFC, Base Mount MPN:1311017161

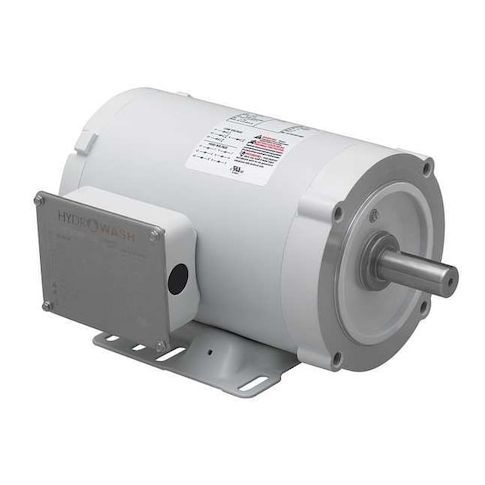

Washdown Motor, 2 HP, TEFC, Base Mount
The Hydrowash Washdown Motor is a reliable and efficient solution for applications requiring high-torque operation in harsh environments. Suitable for continuous duty cycles, this 2 HP motor is designed for three-phase applications and operates at 1,725 RPM. Its totally enclosed fan-cooled (TEFC) design and Class F insulation ensure maximum protection against dust and moisture. Ideal for use in washdown areas, the motor is also suitable for other applications where high-temperature and high-humidity conditions exist, including food processing, pharmaceuticals, and chemical manufacturing. Its compact size and easy installation make it a versatile choice for various industries.
Top product features:
- Two-phase operation
- Totally Enclosed Fan Cooled motor design
- Continuous duty cycle
Top product applications:
- Industrial washdown equipment
- Water treatment plants
- Food processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design None, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.60
- Package Width: 11.60
- Package Height: 9.10
- Package Weight: 45.00
