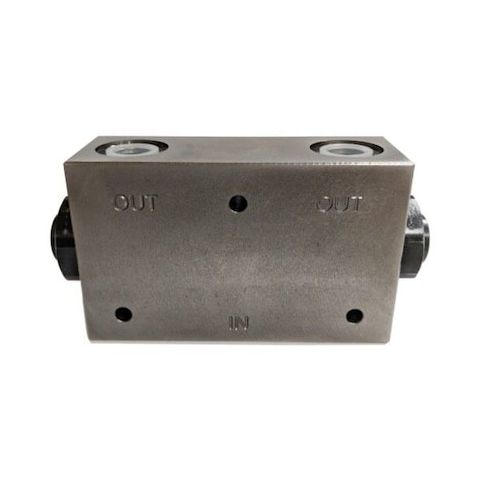

Pilot Operated Lock Valve - 30 GPM, 3000 PSI, SAE 8 Ports MPN:220801
Free Shipping
In Stock
This Pilot Operated Lock Valve is designed to lock a cylinder in place when a directional control valve is in the neutral position, ensuring safe and reliable operation. The double pilot-operated check valve prevents reverse flow, while the hardened steel seat and ball provide a durable and long-lasting solution. With a flow rate of 30 GPM and a pressure rating of 3000 PSI, this valve is ideal for heavy-duty applications in industries such as construction, manufacturing, and oil and gas. Its compact design and SAE #8 ports make it easy to integrate into existing systems.
Top product features:
- Two valve ports and two cylinder ports
- Double pilot-operated check valve to prevent reverse flow
- Hardened steel seat and ball for durability
Top product applications:
- Locking hydraulic cylinders in place when a directional control valve is in the neutral position.
- Preventing reverse flow in hydraulic systems by using a double pilot-operated check valve.
- Acting as a safety valve to prevent over-pressurization in hydraulic systems by allowing oil to return through the opposite check valve.
Used to lock a cylinder in place when a directional control valve is in the neutral position. In operation, pressurized oil flow is directed through one of the cylinder ports. The pressure from the valve port will shift the pilot spool opening of the corresponding check valve, allowing oil to return through the opposite check valve. This valve uses a hardened steel seat and ball and should not be used in applications requiring zero leakage. Includes: Two valve ports and two cylinder ports, Double pilot-operated check valve to prevent reverse flow, 4:1 Ratio, 30 GPM, >3000 PSI, SAE #8 Ports, Steel body
- Two valve ports and two cylinder ports
- Double pilot-operated check valve to prevent reverse flow
- 30 GPM
- 3000 PSI
- SAE #8 Ports
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.25
- Package Width: 4.50
- Package Height: 9.50
- Package Weight: 8.00
