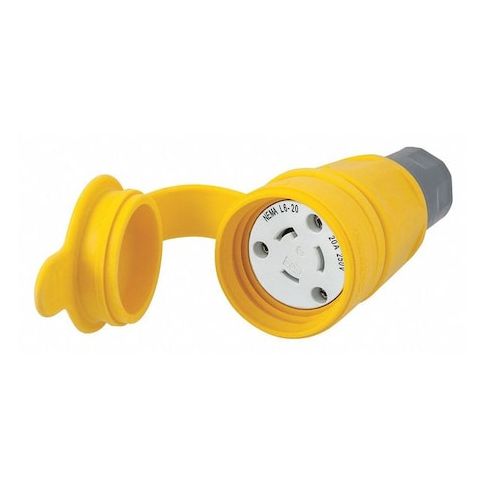

Watertight Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL27W48

• The HUBBELL 20A Watertight Locking Connector (L6-20R) is a heavy-duty electrical connector suitable for use in industrial and commercial environments requiring watertight connections. It features a smooth thermoplastic elastomer body that minimizes collection points, simplifying washdown processes and reducing debris accumulation. The connector accommodates cords ranging from 0.375 to 0.875 inches in diameter and uses screw terminals for wire connections.





  Key Features of the HUBBELL 20A Watertight Locking Connector:





  • Current/Voltage Rating: Rated for 20 A, 250V AC, single phase


  • NEMA Configuration: L6-20R with straight connection orientation


  • Watertight Ratings: NEMA Type 4, 4X, 6, 6P, and IP69K moisture resistance


  • Material Construction: Body and housing made from thermoplastic elastomer
  • contacts are nickel-plated brass
  • retainer is clear polycarbonate


  • Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in
  • supports wire sizes from minimum cord (16/3 SJ or equivalent) up to maximum cord (10/5 S or equivalent)


  • Corrosion & UV Resistance: Exposed materials are corrosion-resistant and UV stabilized


  • Operating Temperature Range: -40°C to +60°C continuous operation


  • Dielectric Strength & Performance: Withstands up to 2500V AC dielectric voltage
  • temperature rise limited to max of +30°C at rated current per UL498


  • Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards
  • UL listed flammability rating HB
