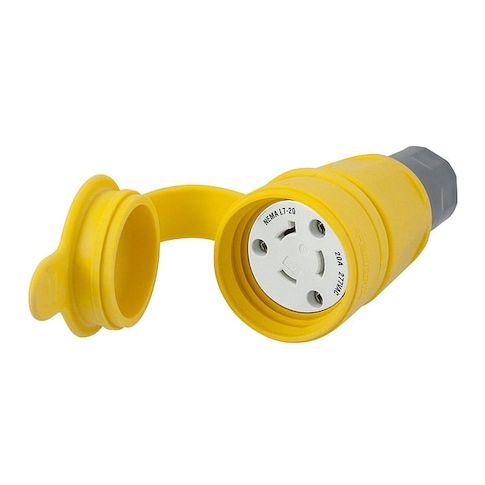

Watertight Locking Connector, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL27W49
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Connector is a heavy-duty electrical connector designed for use in industrial and commercial settings where watertight connections are specified. Its thermoplastic elastomer body and stainless steel hardware ensure a reliable and secure connection, even in harsh environments. Suitable for applications such as construction, manufacturing, and outdoor installations, this connector provides a safe and efficient way to connect electrical devices. Its NEMA rating and compliance with industry standards make it a trusted choice for professionals who require high-quality electrical connections that can withstand the elements.
Top product features:
- Accommodates cable diameters from 0.375 in to 0.875 in
- Accepts wire sizes from 18 AWG to 10 AWG
- Meets NEMA WD-1/WD-6 and ANSI standards
Top product applications:
- Industrial electrical distribution systems
- Heavy-duty machinery and equipment installations
- Marine and offshore applications
The HUBBELL 20A Watertight Locking Connector (L7-20R) is a heavy-duty electrical connector suitable for use in industrial and commercial settings where watertight connections are specified. Rated for 277V AC, this connector features a thermoplastic elastomer body with a smooth surface intended to facilitate cleaning procedures in various environments.
Key Features of the HUBBELL 20A Watertight Locking Connector:
- Current/Voltage Rating: 20 amps, 277V AC
- NEMA Configuration: L7-20R
- single phase, 2-pole, 3-wire
- Body Material: Thermoplastic elastomer with stainless steel hardware
- Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in
- wire size range from 18 AWG to 10 AWG
- Enclosure Ratings: NEMA Types 4, 4X, 6, and IP69K as specified by the manufacturer
- UV/Sunlight Resistant: Exposed materials are UV stabilized per product specifications
- Operating Temperature Range: -40°C to +60°C continuous operation
- Standards Compliance: Meets NEMA WD-1/WD-6 and ANSI standards
- UL498 current interrupting rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 4.10
- Package Height: 3.30
- Package Weight: 0.77
