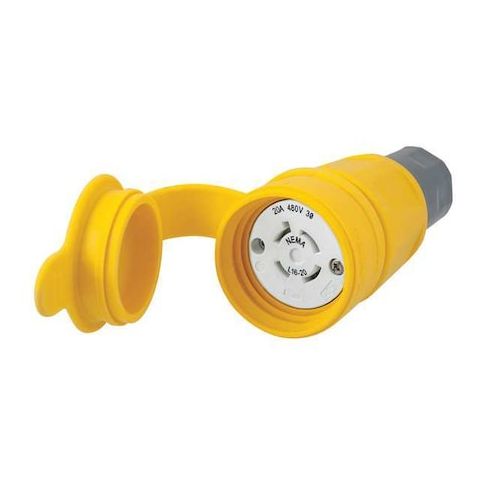

Watertight Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Yellow MPN:HBL27W76
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Connector is a reliable and durable solution for applications requiring watertight characteristics, such as marine, industrial, and outdoor electrical systems. Rated for 480V AC and 20 amps, this three-pole, four-wire connector features a thermoplastic elastomer body and nickel-plated brass contacts with screw terminals. Its corrosion-resistant design and IP69K rated enclosure ensure reliable performance in harsh environments. Suitable for use in three-phase power distribution systems, this connector is ideal for applications such as electrical panels, control systems, and equipment enclosures, providing secure and reliable connections in demanding conditions.
Top product features:
- Thermoplastic elastomer body with a smooth surface finish provides a reliable and long-lasting watertight seal.
- Nickel-plated brass contacts with screw terminals ensure secure and reliable conductivity.
- Black elastomer bushing provides strain relief and protects the connector from damage caused by flexing or movement.
Top product applications:
- Industrial Control Panels
- Marine Electrical Systems
- Heavy-Duty Machinery
The HUBBELL 20A Watertight Locking Connector (L16-20R) is a three-pole, four-wire connector designed for use in applications where watertight characteristics are specified. Rated for 480V AC and 20 amps, this connector features a thermoplastic elastomer body with a smooth surface finish. It uses nickel-plated brass contacts with screw terminals.
Key Features of the HUBBELL - 20A Watertight Locking Connector:
- Body/Housing Material: Thermoplastic elastomer with Valox components
- UV stabilized components
- Bushing Material: Black elastomer bushing designed to provide strain relief
- Contact Material: Nickel-plated brass contacts for reliable conductivity
- Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in
- supports wire sizes from 18 AWG to 10 AWG
- NEMA Receptacle Configuration: L16-20R (3 pole, 4 wire)
- Current/Voltage Rating: Rated at 20 A and up to 480V AC
- compatible with three-phase power distribution systems as specified by the NEMA L16-20R configuration
- NEMA Enclosure/IP Ratings: Meets NEMA types 12, 4, 4X, 6, and 6P
- IP69K rated enclosure (moisture ingress protection)
- Operating Temperature Range: -40°C to +60°C continuous operation
- Corrosion/Moisture/UV Resistance: Corrosion-resistant hardware
- materials selected based on resistance to moisture ingress and sunlight exposure
- Wire Connection Type: Screw terminals provide secure attachment of conductors
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.60
- Package Height: 3.00
- Package Weight: 0.79
