Watertight Flanged Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount MPN:HBL65W49
Free Shipping
In Stock

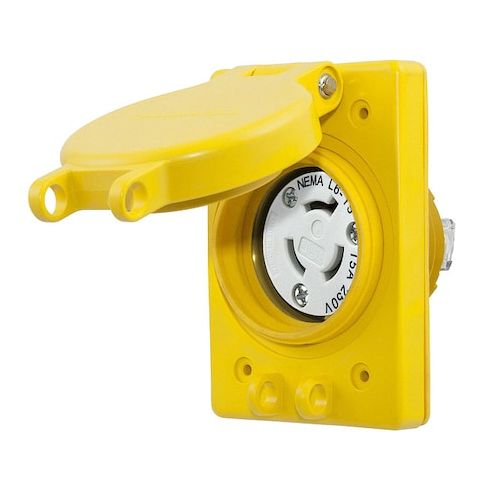

The HUBBELL 15A Watertight Locking Receptacle is a rugged and reliable electrical device designed for use in harsh industrial environments where secure and watertight connections are essential. Its locking mechanism and lift cover ensure tamper-proof and watertight connections, while its NEMA-rated enclosure and IP69K rating protect against dust, water, and extreme temperatures. Suitable for use in food processing, chemical plants, and other areas where electrical safety is paramount, this receptacle provides a secure and reliable connection for 15A, 250V AC single-phase power. Its durable design and wide operating temperature range make it an ideal choice for demanding applications.
Top product features:
- Impact-resistant PBT body
- Thermoplastic elastomer housing and insulation
- Nickel-plated brass contacts
Top product applications:
- Industrial Environments
- Outdoor Applications
- Marine or Offshore Installations
The HUBBELL 15A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in industrial environments where secure and watertight connections are specified. Rated for 250V AC, this receptacle includes a locking mechanism with a lift cover.
Key Features of the HUBBELL 15A Watertight Locking Receptacle:
- Current/Voltage Rating: 15 A, 250V AC
- NEMA Configuration: L6-15R (2-pole, 3-wire)
- Mount Type: Flush mount with rectangular flange
- Casing Materials: Impact-resistant PBT body
- thermoplastic elastomer housing and insulation
- clear polycarbonate retainer
- Contact Material: Nickel-plated brass contacts
- Cover Included: Includes protective lift cover
- Operating Temperature Range: -40°F to 140°F (-40°C to +60°C)
- NEMA Enclosure Ratings: Meets NEMA Types 4, 4X, 12, 6, and 6P requirements
- IP69K rated when in use
- Standards Compliance: ANSI
- NEMA WD-1 & WD-6 standards compliant
- Wire Connection Type: Screw terminals support #18–#10 AWG wire sizes
- Resistance Properties: UV stabilized materials
- rated as impact resistant and watertight according to product specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.30
- Package Height: 3.60
- Package Weight: 0.45
