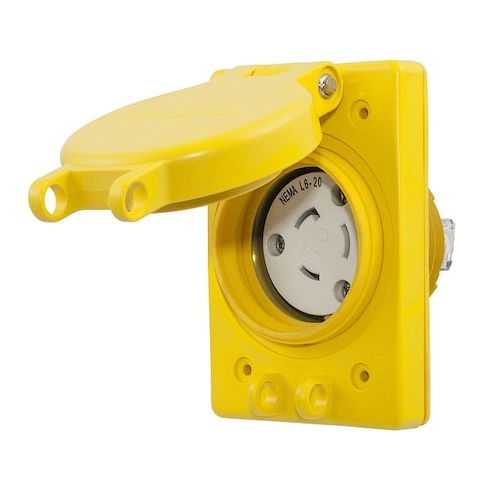

Watertight Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount MPN:HBL67W48
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Receptacle is a rugged and reliable electrical device designed for use in harsh environments. Suitable for applications such as outdoor construction sites, marine environments, and areas prone to water or dust, this receptacle provides a watertight and impact-resistant connection. Its flanged, flush-mount design allows for easy installation and panel mounting, while its NEMA L6-20R configuration accommodates 2 poles and 3 wires. With a temperature range of -40°F to 140°F and corrosion-resistant materials, this receptacle ensures safe and reliable electrical connections in demanding conditions.
Top product features:
- Watertight Design: Rated IP69K
- Impact Resistance: Features a PBT lid, cover plate, and receptacle body
- Corrosion Resistant: Includes stainless steel hardware and connection points made from corrosion-resistant materials
Top product applications:
- Marine applications where a watertight and impact-resistant electrical connection is required
- Outdoor environments where exposure to weather conditions is a concern
- Industrial settings where a high level of electrical safety and durability is necessary
The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in environments requiring rated watertight and impact-resistant electrical connections. This receptacle features a lift cover and is suitable for both panel mounting on flat surfaces and installation to FD/FS boxes. It accommodates NEMA L6-20R configurations with 2 poles, 3 wires, rated at 250V AC and 20 amps.
Key Features of the HUBBELL 20A Watertight Locking Receptacle:
- Watertight Design: Rated IP69K
- complies with NEMA enclosure types 4, 4X, 6, 6P, and 12.
- Impact Resistance: Features a PBT lid, cover plate, and receptacle body.
- Corrosion Resistant: Includes stainless steel hardware and connection points made from corrosion-resistant materials.
- Material Construction: Housing made from thermoplastic elastomer
- contact material is nickel-plated brass
- insulation also uses thermoplastic elastomer.
- Cord Compatibility: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals (standard wiring style).
- NEMA Configuration: L6-20R locking configuration with straight connection orientation
- polarized design intended to align with compatible connectors.
- Operating Temperature Range: Suitable for continuous operation from -40°F to +140°F (-40°C to +60°C).
- Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements
- current interrupting per UL498 testing protocols.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.40
- Package Height: 3.40
- Package Weight: 0.62
