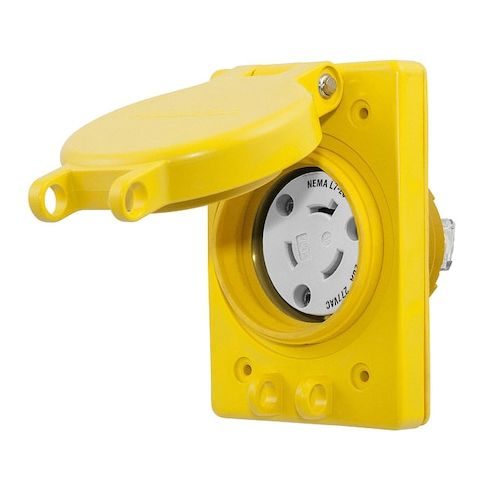

Watertight Flanged Locking Receptacle, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Flush Mount MPN:HBL67W49
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Receptacle is a reliable and durable solution for harsh environments, providing moisture and impact resistance in areas such as industrial facilities, outdoor settings, and washdown areas. With a locking type connection and IP69K ingress protection, it ensures secure and watertight operation. Suitable for single-phase 277V AC operation at 20 amps, this receptacle meets NEMA Types 4, 4X, 6, 6P, and 12 standards, making it ideal for applications in wet or corrosive conditions, including food processing, pharmaceutical manufacturing, and marine environments.
Top product features:
- Accommodates both straight blade and Twist-Lock NEMA configurations
- Rated for single-phase 277V AC operation at 20 amps
- Meets NEMA Types 4, 4X, 6, 6P, and 12 standards for water/moisture resistance
Top product applications:
- Industrial control panels
- Outdoor lighting installations
- Wet or washdown areas in food processing plants
The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for installation in environments requiring moisture and impact resistance. This receptacle includes a housing and cover rated for water ingress protection with a thermoplastic elastomer housing and cover, components constructed from materials rated for corrosion resistance, and is rated for single-phase 277V AC operation at 20 amps. It accommodates both straight blade and Twist-Lock® NEMA configurations and can be mounted to FD/FS boxes or directly to flat panels.
Key Features of the HUBBELL 20A Watertight Locking Receptacle:
- NEMA Configuration: L7-20R
- locking type connection
- Current/Voltage Rating: Rated for 20 A at 277V AC, single phase
- Poles/Wires: 2 poles, 3 wires
- Cord Size Compatibility: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals
- Material Construction: Impact resistant PBT lid/body
- thermoplastic elastomer seal (no change
- factual descriptor)
- nickel-plated brass contacts
- stainless steel hardware
- Mount Type: Flush mount with rectangular flange design
- Enclosure Ratings: IP69K ingress protection
- meets NEMA Types 4, 4X, 6, 6P, and 12 standards for water/moisture resistance
- Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)
- Industry Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements
- Special Features: Connection points constructed from materials rated for corrosion resistance suitable for wet or washdown conditions in industrial environments
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.30
- Package Height: 3.30
- Package Weight: 0.60
