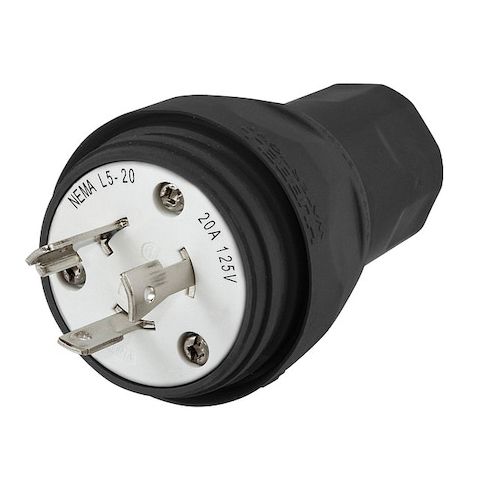

Watertight Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL26W47BK

• The HUBBELL 20A Watertight Locking Plug (L5-20P) is an electrical plug rated for use in specified environments. Featuring a smooth body design and watertight construction

• suitable for washdown procedures, this plug minimizes debris collection and simplifies washdown processes. It accommodates cords from 0.375 to 0.875 inches in diameter and is rated for single-phase, 125V AC operation at up to 20 amps.




  Key Features of the HUBBELL 20A Watertight Locking Plug:





  • Material: Constructed with thermoplastic elastomer housing and nickel-plated brass blades and contacts for durability.


  • Moisture & Dust Resistance: Rated IP69K
  • UL Listed Types 4, 4X, 12, 6, and 6P for watertight performance.


  • Chemical & Impact Resistant: Rated for exposure to specified environmental factors.


  • UV Stabilized: Exposed materials are rated as UV resistant per manufacturer specifications.


  • Operating Temperature Range: -40°C to +60°C continuous operation.


  • NEMA Configuration: L5-20P locking configuration with polarized design


  • Cord Accommodation: Accepts cord sizes from 0.375" to 0.875" diameter
  • supports wire sizes ranging from minimum of 16/3 SJ or equivalent up to maximum of 10/3 S or equivalent types.


  • Screw Terminals: Standard wiring style using screw terminals for secure wire attachment.


  • Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements.
