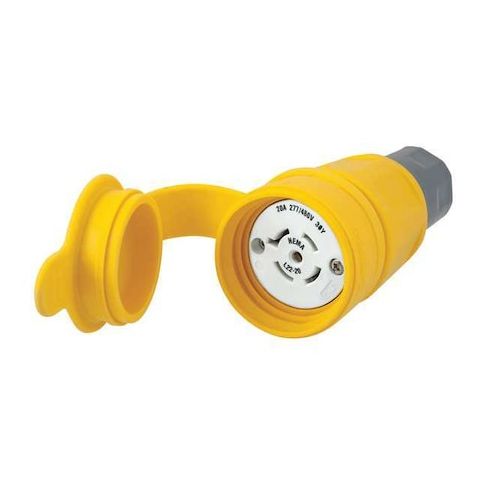

Watertight Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL27W82
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Connector (L22-20R) is a rugged and reliable solution for industrial and commercial electrical applications where moisture and dust resistance are crucial. Designed for three-phase, four-pole connections, this connector features a thermoplastic elastomer body, stainless steel hardware, and nickel-plated brass contacts for secure and durable connections. With a NEMA 4 rating and IP69K rating, it withstands harsh environments and meets ANSI standards. Suitable for outdoor use, this connector is ideal for applications such as construction, manufacturing, and heavy industry, where watertight connections are essential for safety and efficiency.
Top product features:
- It is designed for industrial and commercial electrical applications where watertight characteristics are specified.
- It features a thermoplastic elastomer body with a smooth surface.
- It has nickel-plated brass contacts that ensure reliable electrical connections.
Top product applications:
- Industrial electrical applications where watertight characteristics are specified
- Commercial electrical applications where watertight characteristics are specified
- Outdoor electrical installations where resistance to moisture and dust ingress is required
The HUBBELL 20A Watertight Locking Connector (L22-20R) is a four-pole, five-wire connector designed for industrial and commercial electrical applications where watertight characteristics are specified. Rated for 277/480VAC and 20 amps, this connector features a thermoplastic elastomer body designed with a smooth surface. It includes stainless steel hardware and connection points.
Key Features of the HUBBELL 20A Watertight Locking Connector:
- Body & Housing Material: Constructed from thermoplastic elastomer with Valox components for durability.
- Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in
- maximum wire size up to 10 AWG.
- NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12
- rated for resistance to moisture and dust ingress.
- IP Rating: IP69K rated
- Contact Material: Nickel-plated brass contacts ensure reliable electrical connections.
- Operating Temperature Range: Operating temperature range: -40°C to +60°C
- UV Resistance: All exposed materials are UV stabilized for outdoor suitability.
- Wire Connection Type: Screw terminals accommodate standard wiring practices.
- Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards
- UL listed performance attributes including current interruption per UL498 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.00
- Package Height: 2.60
- Package Weight: 0.80
