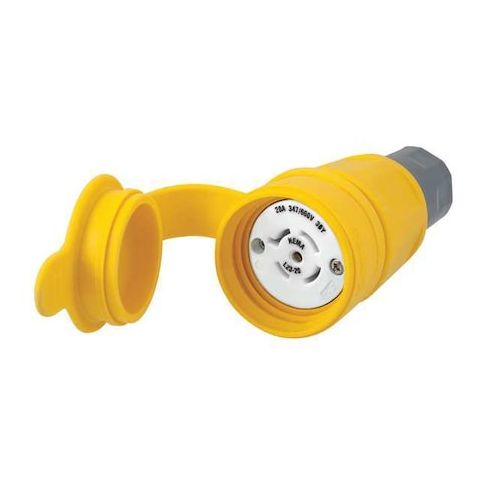

Watertight Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL27W83

• The HUBBELL 20A Watertight Locking Connector (L23-20R) is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight connections are specified. Rated for 347/600VAC and 20 amps, this connector features a smooth thermoplastic elastomer body that features a smooth thermoplastic elastomer body. It is includes stainless steel hardware and connection points

• constructed with UV-stabilized materials suitable for demanding environments.




  Key Features of the HUBBELL 20A Watertight Locking Connector:





  • Current/Voltage Rating: Rated for 20 amps at 347/600V AC


  • NEMA Configuration: L23-20R
  • meets NEMA WD-1, WD-6, ANSI standards


  • Enclosure/IP Ratings: NEMA 4, 4X, 6, 6P & IP69K moisture resistance


  • Body/Housing Material: Thermoplastic elastomer with Valox components


  • Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in


  • Operating Temperature Range: -40°C to +60°C continuous use


  • Contact Material: Nickel-plated brass contacts
  • screw terminal wire connections


  • Resistance Properties: Construction includes components that meet applicable corrosion resistance and UV exposure standards
