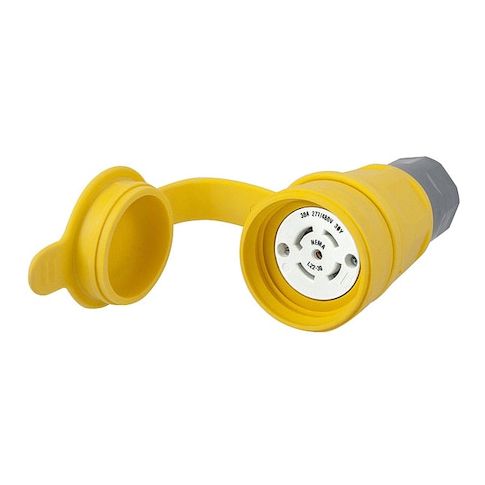

Watertight Locking Connector, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL29W82

• The HUBBELL 30A Watertight Locking Connector (L22-30R) is an electrical connector intended for industrial and commercial applications. It features an IP69K rated enclosure with a smooth body design to minimize debris collection and simplify washdown processes. The connector accommodates 4 poles and 5 wires, supports three-phase power at 277/480VAC, and utilizes screw terminals for secure wire connections.





  Key Features of the HUBBELL 30A Watertight Locking Connector:





  • Current/Voltage Rating: Rated for 30 amps and 277/480V AC operation


  • NEMA Configuration: L22-30R
  • meets NEMA WD-1, WD-6, ANSI standards


  • IP69K rated
  • constructed to withstand exposure to water and corrosive elements


  • Material Construction: Thermoplastic elastomer housing with nickel-plated brass contacts
  • UV stabilized materials


  • Cord Accommodation: Accepts cable diameters from 0.375 in to 1.125 in
  • maximum wire size up to 8 AWG


  • Rated for operation within a temperature range of -40°C to +60°C


  • NEMA Enclosure Ratings: Complies with NEMA Types 4, 4X, 6, and 6P for moisture resistance


  • Smooth body design with strain relief nut
