Watertight Locking Connector, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL29W83
Free Shipping
In Stock

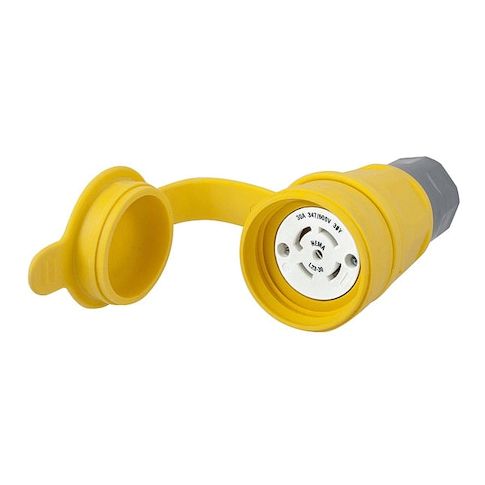

The HUBBELL 30A Watertight Locking Connector L23-30R is a reliable and durable electrical connector designed for use in harsh industrial and commercial environments. Suitable for applications where watertight properties are specified, this connector provides a secure and corrosion-resistant connection for 30A, 347/600V AC, three-phase, four-pole systems. Its thermoplastic elastomer body and stainless steel hardware ensure long-lasting performance in extreme temperatures and exposure to moisture, UV, and chemicals. Ideal for use in outdoor and indoor settings, this connector is perfect for applications such as construction sites, industrial equipment, and commercial electrical installations where reliability and safety are paramount.
Top product features:
- Thermoplastic elastomer body with a smooth surface finish provides a durable and reliable connection.
- Accepts cord diameters from 0.375 in to 1.125 in and suitable for wire sizes ranging from 18 AWG to 8 AWG, allowing for versatile cord and wire connections.
- Nickel-plated brass contacts ensure a secure and corrosion-resistant connection.
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Outdoor electrical installations in harsh environments
The HUBBELL 30A Watertight Locking Connector L23-30R is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight properties are specified. Rated for 347/600V AC and 30 amps, this connector features a thermoplastic elastomer body with a smooth surface finish. It is equipped with stainless steel hardware and nickel-plated brass contacts.
Key Features of the HUBBELL 30A Watertight Locking Connector L23-30R:
- Body Material: Thermoplastic elastomer housing
- rated for exposure to moisture, UV, and certain chemicals as per manufacturer specifications.
- Cord Accommodation: Accepts cord diameters from 0.375 in to 1.125 in
- suitable for wire sizes ranging from 18 AWG to 8 AWG.
- NEMA Enclosure Rating: Rated NEMA Types 4, 4X, 6, 6P, and 12
- IP69K rated.
- Contact Material: Nickel-plated brass contacts.
- Operating Temperature Range: Rated for operation within -40°C to +60°C continuous temperature range.
- Connection Type: Straight connection orientation with screw terminals
- grounded design complies with NEMA WD-1/WD-6 & ANSI standards.
- Corrosion Resistant: Exposed materials are UV stabilized as per manufacturer specification
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 2.80
- Package Weight: 1.05
