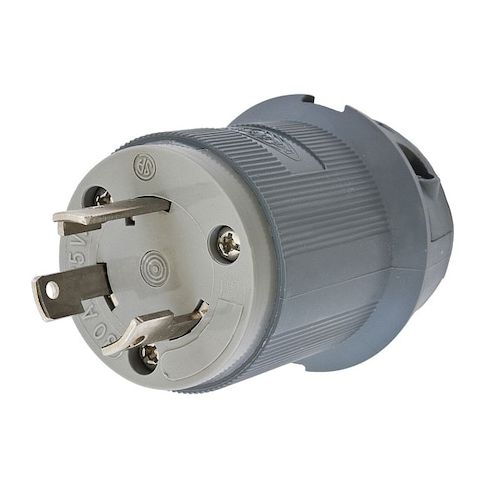

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray MPN:HBL2611F

The HUBBELL 30A Locking Plug L5-30P is a locking plug rated for use in demanding environments where a secure electrical connection is required. It features a two-pole, three-wire configuration and is rated for 30 amps at 125V AC. The plug includes a cord grip design intended to reduce strain on terminations, as well as a clear, funnel-shaped wire entry assists with wiring. An integral dust shield helps keep the wiring chamber free from dust and contaminants.

Key Features of the HUBBELL 30A Locking Plug L5-30P:

• Current/Voltage Rating: Rated for 30A, 125V AC


• NEMA Configuration: L5-30P (locking type)


• Cord Range: Accepts cable diameters from 0.360" to 0.930"


• Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire


• Material Construction: constructed with materials specified as nylon housing and brass blades


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Screw Terminals: Standard screw terminal connections for secure wiring


• Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596


• Ingress Protection Rating: IP20 – suitable for indoor dry locations unless otherwise protected
