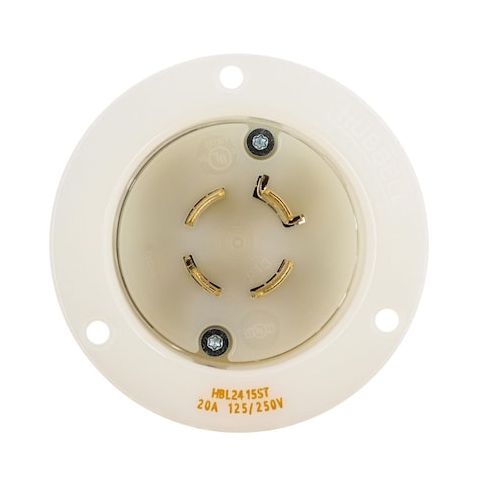

Locking Receptacle, 20 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals, White MPN:HBL2415ST
Free Shipping
In Stock
The HUBBELL Locking Receptacle is a reliable and efficient solution for industrial electrical installations. Designed for use in indoor settings, this receptacle features spring termination and backwired screw terminals for streamlined installation, reducing the need for specialized tools. Rated for 20 A at 125/250V AC, it's compatible with L14-20P plugs and accepts wire sizes from 14 AWG to 8 AWG. Suitable for use with equipment up to 2 horsepower, this receptacle meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements. Ideal for applications where safety and convenience are paramount, including manufacturing facilities, warehouses, and commercial kitchens.
Top product features:
- The HUBBELL Locking Receptacle features spring termination and backwired screw terminals to streamline installation without requiring a screwdriver or torque wrench.
- The receptacle is designed with a funnel-shaped wire entry to facilitate wire termination by reducing strand relaxation during wiring.
- The receptacle is rated for use with equipment up to 2 horsepower.
Top product applications:
- Industrial Settings
- Office Buildings
- Data Centers
The HUBBELL Locking Receptacle is a flanged, indoor-rated electrical receptacle intended for use in industrial settings. It features spring termination and backwired screw terminals to streamline installation, allowing installation without requiring a screwdriver or torque wrench. The funnel-shaped wire entry is intended to facilitate wire termination by reducing strand relaxation during wiring.
Key Features of the HUBBELL Locking Receptacle:
- NEMA Configuration: L14-20R receptacle compatible with L14-20P plugs
- Current/Voltage Rating: Rated for 20 A at 125/250V AC
- Wire Size Compatibility: Accepts 14 AWG to 8 AWG copper wire (included)
- Number of Poles/Wires: 3 poles, 4 wires
- grounded design
- Horsepower Rating: Rated for use with equipment up to 2 horsepower
- Operating Temperature Range: -40°C to 75°C maximum operating temperature
- Housing Material: Nylon housing with natural finish
- UL 94 HB flammability rating
- Circuit Termination Type: Screw terminals with spring termination and backwired entry
- Face Diameter/Flange Diameter/Overall Depth: Face diameter is 2.23 in, flange diameter is 2.686 in, overall depth is 2.47 in
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 3.20
- Package Weight: 0.31
