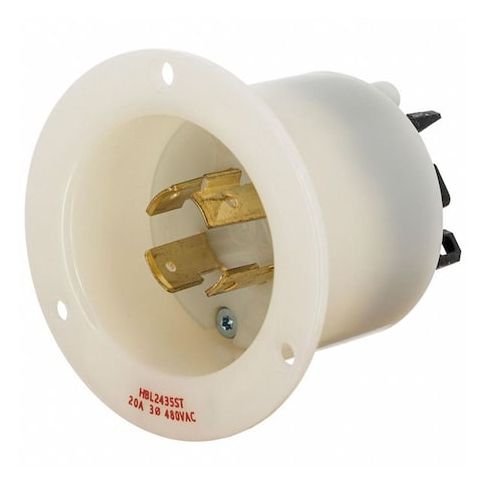

Locking Receptacle, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Spring Clamp Terminals, White MPN:HBL2435ST
Free Shipping
In Stock
The HUBBELL Locking Receptacle is designed for indoor industrial applications, providing a secure and efficient solution for electrical connections. Its spring clamp terminals simplify wire termination, reducing the need for screwdrivers or torque wrenches. Rated for 20 A at 480V AC, three-phase, this receptacle is suitable for equipment requiring up to 5 horsepower. Its rugged construction withstands operating temperatures from -40°C to +75°C, making it ideal for use in harsh environments. Perfect for industrial settings, this receptacle ensures reliable and safe electrical connections, meeting CSA, Federal Specification W-C-596, and UL 498 requirements.
Top product features:
- Flanged design for indoor industrial applications
- Spring clamp terminals allow wire termination without screwdrivers or torque wrenches
- Backwired design with funnel-shaped wire entry facilitates installation and connection
Top product applications:
- Industrial settings such as factories, warehouses, and manufacturing plants
- Commercial kitchens and restaurants
- High-power equipment installations in offices and data centers
The HUBBELL Locking Receptacle is a flanged, three-phase electrical receptacle intended for indoor industrial applications. It features spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches. The backwired design and funnel-shaped wire entry facilitate installation and connection, accommodating copper wires ranging from 14 AWG to 8 AWG.
Key Features of the HUBBELL Locking Receptacle:
- NEMA Configuration: L16-20R receptacle compatible with L16-20P plugs
- Current/Voltage Rating: Rated for 20 A at 480V AC, three-phase
- Wire Connection Type: Spring clamp terminals are used for wire connection
- Number of Poles/Wires: 3 poles, 5 wires
- grounded configuration
- Horsepower Rating: Rated for use with equipment requiring up to 5 horsepower
- Copper Wire Range Included: Accepts copper conductors from 14 AWG to 8 AWG
- Operating Temperature Range: -40°C minimum to +75°C maximum
- Housing Material/Finish: Nylon housing with natural finish
- UL 94 HB flammability rating
- IP Rating: IP20 (protection against solid objects larger than 12 mm)
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, UL 498 requirements
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 3.10
- Package Weight: 0.31
