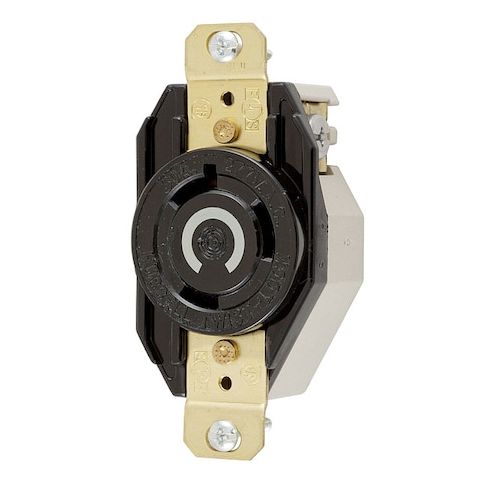

Locking Receptacle, L7-30R, 30 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL2630
Free Shipping
In Stock
The HUBBELL 30A Locking Receptacle L7-30R is a reliable and versatile electrical solution for industrial and commercial settings. Rated for 30 amps at 277V AC single phase, this twist-lock receptacle ensures secure connections during operation. Its flush mount design and wire restraint recesses reduce terminal loosening and make installation easier. Suitable for back and side wiring, this receptacle is ideal for applications such as manufacturing, warehousing, and office spaces. Its durable construction and compliance with CSA, UL, and Federal Specification W-C-596 standards ensure a safe and efficient electrical system.
Top product features:
- Current/Voltage Rating: Rated for 30 A at 277V AC single phase
- Accommodates 2-pole, 3-wire configurations with wire restraint recesses to reduce terminal loosening
- Features a twist-lock mechanism to maintain connection during operation
Top product applications:
- Industrial Settings
- Commercial Settings
- Heavy-Duty Equipment
The HUBBELL 30A Locking Receptacle L7-30R is an electrical receptacle rated for use in industrial and commercial settings. It features a twist-lock mechanism that helps maintain connection during operation and accommodates 2-pole, 3-wire configurations rated for 277V AC and up to 30 amps. The device supports both back and side wiring with wire restraint recesses are included to reduce terminal loosening, while color-coded face markings correspond to voltage identification during installation.
Key Features of the HUBBELL - 30A Locking Receptacle L7-30R:
- Current/Voltage Rating: Rated for 30 A at 277V AC single phase
- NEMA Configuration: L7-30R (twist-lock)
- Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire
- screw terminals
- Material Construction: Nylon polyester base, nylon housing, cast aluminum components
- brass contacts and mounting system
- Mount Type: Flush mount with included screw hardware
- Operating Temperature Range: -40°C to +75°C (without impact)
- Flammability Rating: V2 or better per UL94/CSA standards
- Dielectric Strength: Withstands minimum of 2,000V
- Horsepower Rating: Maximum load capacity: 3 hp
- Coding & Identification: Face color coding by voltage
- terminals identified per UL498 standard designations (X, Y, Z, White, Green)
- Standards Compliance: Certified CSA C22.2 No.42
- Federal Specification W-C-596
- Listed UL498
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.00
- Package Height: 1.80
- Package Weight: 0.27
