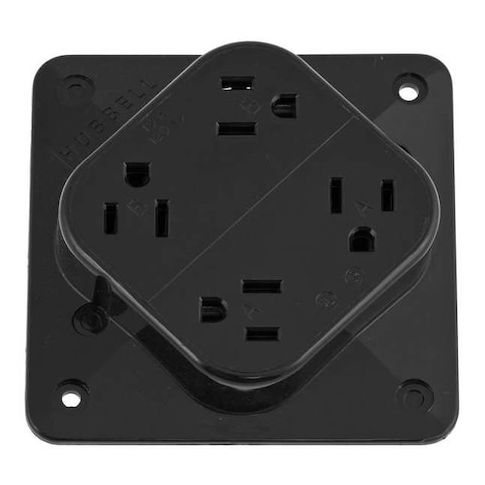

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL415BK
Free Shipping
In Stock
The HUBBELL 4-PLEX Receptacle is a high-performance surface mount receptacle designed for commercial and industrial environments. Suitable for use in dry indoor locations, this quad outlet device features four NEMA 5-15R straight blade outlets with grounding capability. Its back-wired design and screw terminals accommodate #14-12 AWG copper wire, making it ideal for applications where flexibility and reliability are crucial. With a UL94 V-2 flammability rating and certifications from UL, CSA, and NEMA, this receptacle ensures safe and efficient power distribution in a variety of settings, including offices, warehouses, and manufacturing facilities.
Top product features:
- Quad (four) NEMA 5-15R straight blade outlets in one unit
- Rated for 15A, 125V AC
- Grounded, two-pole three-wire configuration with green ground screw
Top product applications:
- Commercial and industrial environments
- Office spaces and workstations
- High-traffic areas such as lobbies and hallways
The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 15A and 125V AC. Suitable for use in commercial and industrial environments, it features four NEMA 5-15R outlets in a single housing with grounding capability. The receptacle uses screw terminals to accommodate #14-12 AWG stranded or solid copper conductors and supports back wiring for installation.
Key Features of the HUBBELL 4-PLEX Receptacle:
- Outlet Configuration: Quad (four) NEMA 5-15R straight blade outlets in one unit
- Amperage/Voltage Rating: Rated for 15A, 125V AC
- Mounting Type: Surface mount design suitable for indoor dry locations
- Material Construction: Polycarbonate housing with brass contacts
- UL94 V-2 flammability rating
- Wiring Method: Back wired via screw terminals
- accepts #14–12 AWG copper wire
- Grounding: Grounded, two-pole three-wire configuration with green ground screw (#8-32 brass)
- Circuit Features: Anchor hole and loop feature secures solid wire
- break-off tabs allow split wiring
- triple wipe contacts designed to maintain electrical contact
- Certifications & Standards: Listed to UL Standard 498 File E2186, CSA Certified C22.2 No.42 File 285, NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 1.70
- Package Height: 4.50
- Package Weight: 0.40
