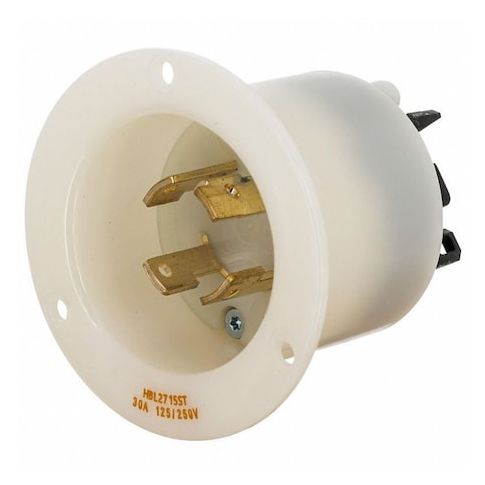

Locking Receptacle, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Spring Clamp Terminals MPN:HBL2715ST
Out Of Stock
The HUBBELL Locking Receptacle is a reliable and secure indoor electrical solution, ideal for use in commercial and residential settings. Its spring clamp terminals enable tool-free wire termination, simplifying installation and reducing labor costs. The receptacle accommodates 14 AWG to 6 AWG copper wires and meets NEMA L14-30R configuration with grounding requirements, ensuring safe and efficient power distribution. Suitable for applications such as office spaces, data centers, and industrial facilities, this locking receptacle provides a high level of security and protection against tampering, making it an excellent choice for sensitive electrical environments.
Top product features:
- The HUBBELL Locking Receptacle features spring clamp terminals that allow tool-free wire termination.
- The receptacle accommodates 14 AWG to 6 AWG copper wires for flexible wire connection options.
- The receptacle is rated for circuits up to 2 hp, making it suitable for heavy-duty applications.
Top product applications:
- Indoor office spaces for powering computers, printers, and other office equipment
- Commercial kitchens for powering appliances and equipment
- Industrial settings for powering machinery and tools
The HUBBELL Locking Receptacle is a flanged electrical receptacle intended for indoor use. It features spring clamp terminals allow tool-free wire termination, and its funnel-shaped wire entry facilitates backwired installation. This locking receptacle accommodates 14 AWG to 6 AWG copper wires and is compatible with NEMA L14-30R configuration with grounding requirements.
Key Features of the HUBBELL Locking Receptacle:
- Current/Voltage Rating: Rated for 30 A at 125/250V AC
- NEMA Configuration: Plug - L14-30P
- Receptacle - L14-30R
- Wire Connection Type: Spring clamp terminals enable tool-free terminations
- Wire Size Compatibility: Accepts copper wires from 14 AWG to 6 AWG
- Number of Poles/Wires/Blades: 3 poles, 4 wires, and 4 blades
- Horsepower Rating: Rated for circuits up to 2 hp
- Housing Material & Finish: Nylon housing with natural finish
- UL94 HB flammability rating
- Operating Temperature Range: -40°C to +75°C maximum operating temperature
- Certain Dimensions: Face diameter – 2.23 in
- Flange diameter – 2.686 in
- Overall depth – 2.56 in
- Face plate width – .09 in
- IP Rating: IP20 (protection against solid objects over 12mm)
- Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL498 certified
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.20
- Package Height: 3.30
- Package Weight: 0.21
