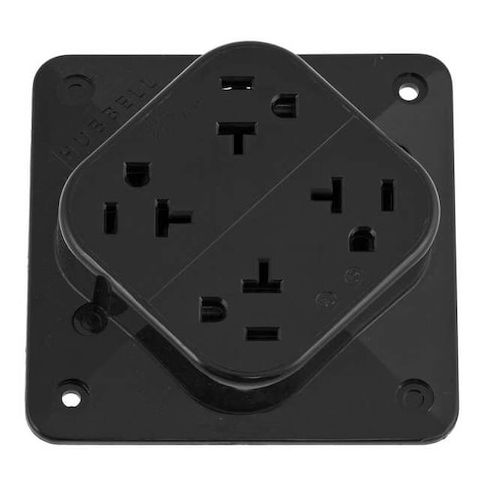

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420BK
Free Shipping
In Stock
The HUBBELL 4-PLEX Receptacle is a versatile and reliable surface mount receptacle designed for commercial and industrial environments. Suitable for use in a variety of applications, including offices, warehouses, and manufacturing facilities, this quad outlet device provides four NEMA 5-20R outlets with grounding capability. With its durable polycarbonate base and brass contacts, this receptacle can withstand heavy use and harsh conditions. Its easy-to-use screw terminals and accommodating design make it a convenient and efficient solution for installing and upgrading electrical systems. Perfect for upgrading to 20A and 125V AC capacity, this receptacle is a must-have for any commercial or industrial setting.
Top product features:
- Quad outlet device rated for 20A and 125V AC
- Features four NEMA 5-20R straight blade outlets in a single housing
- Accommodates #12 AWG stranded or solid copper conductors
Top product applications:
- Commercial Office Spaces
- Industrial Manufacturing Facilities
- Retail Stores
The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, it features four NEMA 5-20R outlets in a single housing with grounding capability. The receptacle uses screw terminals for wire connections and accommodates #12 AWG stranded or solid copper conductors.
Key Features of the HUBBELL 4-PLEX Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- Outlet Configuration: Quad (four) NEMA 5-20R straight blade outlets
- Mounting Type: Surface mount design intended for indoor dry locations
- Wiring Method: Back wiring with screw terminals
- accepts #12 AWG copper wire
- Material Construction: Polycarbonate base and housing
- brass contacts
- Grounding: Grounded, two-pole three-wire configuration
- Circuit Features: Anchor hole and loop feature accommodates solid wire
- triple wipe contacts
- break-off tabs allow split wiring of outlets
- Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.30
- Package Height: 1.50
- Package Weight: 0.44
