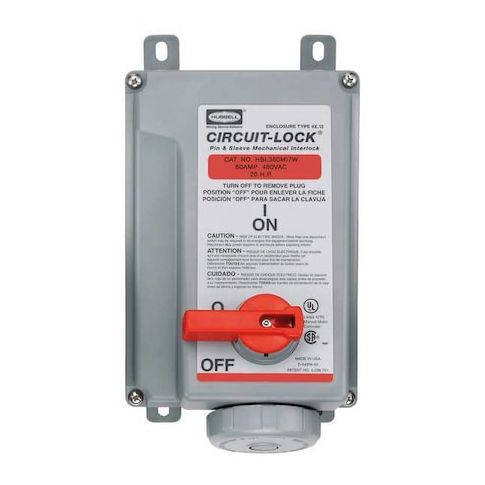

Mechanical Interlock MPN:HBL360MI7W
Free Shipping
In Stock
The HUBBELL Unfused Circuit-Lock Mechanical Interlock Device is a reliable and durable solution for ensuring safe electrical connections in various environments. Suitable for both indoor and outdoor locations, it combines a disconnect switch and pin-and-sleeve receptacle in one unit, restricting removal of the plug when energized and operation of the switch unless the plug is engaged. This device is ideal for applications such as industrial machinery, construction sites, and outdoor events, providing a high level of safety and protection against electrical shock and accidents. Its robust design and IP67 rating ensure reliable performance in harsh conditions.
Top product features:
- Mechanical interlocking restricts removal of the plug when energized and operation of the switch unless the plug is engaged.
- The device includes a disconnect switch and pin-and-sleeve receptacle in one unit.
- The thermoplastic housing offers resistance to impact, moisture, UV exposure, and flammability.
Top product applications:
- Industrial Control Panels
- Highway and Roadway Lighting Systems
- Remote Industrial Control Stations
The HUBBELL Unfused Circuit-Lock® Mechanical Interlock Device combines a disconnect switch and pin-and-sleeve receptacle in one unit
- rated for specified amperage and voltage with IP67 ingress protection. Rated for 60A and 480V AC, this device includes mechanical interlocking that restricts removal of the plug when energized and operation of the switch unless the plug is engaged. The non-metallic thermoplastic housing offers resistance to impact, moisture, UV exposure, and flammability. Constructed with non-metallic thermoplastic housing
- see specifications for material properties. Suitable for both indoor (Type 12) and outdoor (4X/IP67) locations, it meets UL Listed and CSA Certified standards.
Key Features of the HUBBELL Unfused Circuit-Lock® Mechanical Interlock Device:
- Amperage/Voltage Rating: 60A at 480V AC
- Electrical Connection: Pin-and-sleeve type with pressure terminal screws
- accommodates #8 AWG to #2 AWG copper wire
- Poles/Wires/Phase: 2 pole, 3 wire
- single phase
- Enclosure Material: Thermoplastic VALOX base with stainless steel hardware
- red housing color
- Ingress Protection/Moisture Resistance: IP67 rated enclosure. Meets requirements for NEMA Type 4X (outdoor washdown) and Type 12 (indoor dust-tight).
- Mechanical Endurance: Rated for up to 10,000 mechanical cycles / 6,000 electrical cycles
- Circuit Interrupting Capability: Certified for current interruption at full rated current/voltage
- withstands dielectric voltage of minimum 3,000V AC
- Lockable Handle: Lockable handle meets OSHA Lockout/Tagout requirements* (*as stated by supplier/certification body if applicable)
- Temperature Range: Operating range -40°C to +75°C continuous temperature.
- Certain Standards Met: UL Listed. CSA Certified. Conforms with IEC mechanical interlock standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 9.00
- Package Height: 7.30
- Package Weight: 8.10
