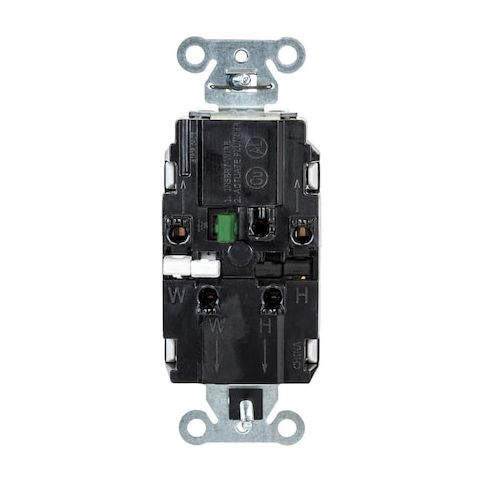

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:DR20STWTR
Free Shipping
In Stock
The HUBBELL EdgeConnect Receptacle is a versatile and convenient tamper-resistant electrical outlet designed for commercial indoor use. Its screwless, push-in wire termination system allows for easy installation without tools, making it perfect for busy professionals and contractors. This decorator duplex outlet is rated for up to 20 A at 125V AC and is polarized and grounded for added safety. Suitable for use in dry, indoor environments, it's ideal for offices, schools, and other commercial spaces where a reliable and easy-to-install electrical outlet is needed. Its compact design and thermoplastic construction make it a great choice for any commercial setting.
Top product features:
- Push-in, back-wired screwless termination enables installation without tools.
- Copper alloy contacts with triple and double wipe design ensure reliable connections.
- Internal shutters intended to limit access by foreign objects provide tamper resistance.
Top product applications:
- Commercial Indoor Use
- Decorative Duplex Electrical Outlet
- Tamper-Resistant Electrical Outlet
The HUBBELL EdgeConnect™ Receptacle is a decorator duplex, tamper-resistant electrical outlet suitable for commercial indoor use. It features a screwless, push-in wire termination system that enables installation without tools. The receptacle accommodates 14 to 10 AWG wires with back wiring and includes mounting hardware for surface mounting applications.
Key Features of the HUBBELL EdgeConnect™ Receptacle:
- Current Rating: Rated for up to 20 A at 125V AC
- NEMA Configuration: 5-20R, polarized and grounded
- Wire Connection Type: Push-in, back-wired screwless termination
- Contact Material: Copper alloy contacts with triple and double wipe design
- Tamper Resistant: Includes internal shutters intended to limit access by foreign objects
- Operating Temperature Range: -40°F to 167°F
- rated for use in dry, indoor environments
- Housing Material: Thermoplastic construction in white color
- Includes Mounting Hardware: Yes
- single gang configuration with two outlets
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.40
- Package Height: 3.90
- Package Weight: 2.20
