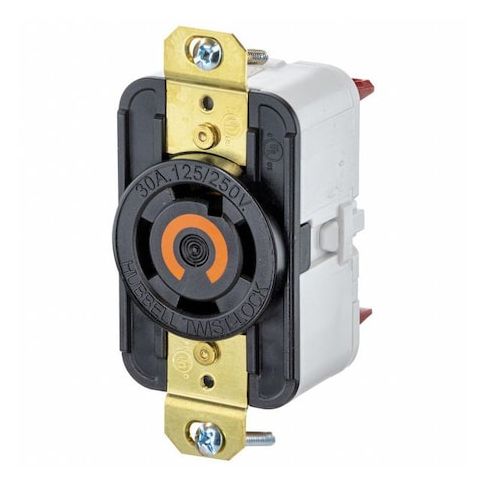

Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black MPN:HBL2710ST

• The HUBBELL Locking Receptacle is a 30A, 125/250V twist-lock receptacle intended for use in commercial and industrial settings. It features spring clamp terminals allow wire connection without screwdrivers or torque wrenches, and its nylon housing with UL 94 V-2 flammability rating provides resistance to impact and abuse. The device includes face color coding by voltage to help users quickly identify compatible devices.





  Key Features of the HUBBELL Locking Receptacle:





  • NEMA Configuration: L14-30R, configured for single-phase applications with 3 poles and 4 wires


  • Current/Voltage Rating: Rated for 30 amps at 125/250V AC


  • Wire Connection Type: Spring clamp terminals support solid wire (14–10 AWG) and stranded wire (14–8 AWG), including compact stranded types


  • Nylon housing with UL 94 V-2 flammability rating


  • Operating Temperature Range: -40°F to 167°F


  • Horsepower rating: 2 hp


  • Mount Type: Flush mount
  • includes mounting strap and hardware


  • NEMA Enclosure/IP Rating: NEMA type 1 enclosure, IP20 rated


  • Standards Compliance: Meets CSA C22.2 and UL 498 standards
